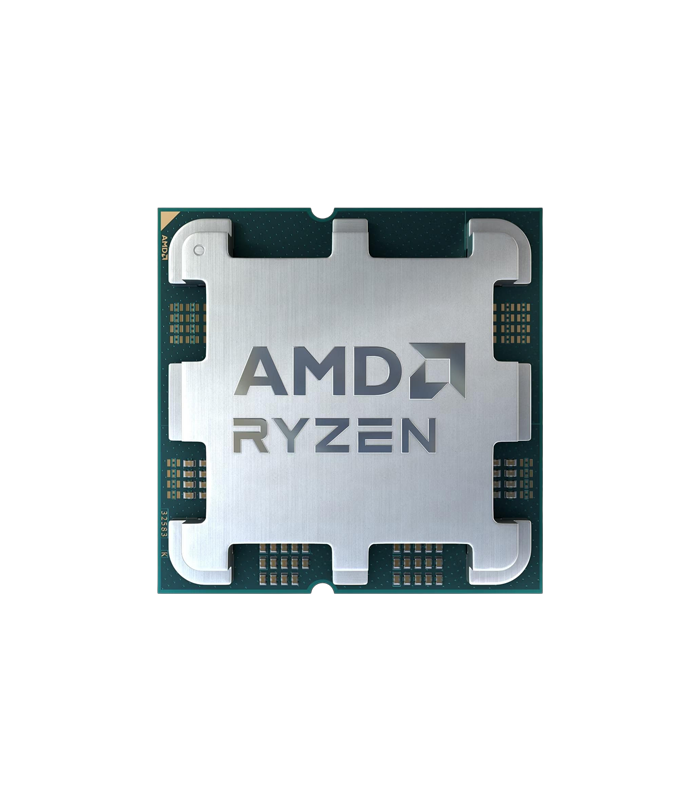

Processor AMD Ryzen 9 9900X Tray

AMD Ryzen 9 9900X – Zen 5 Processing Power

The AMD Ryzen 9 9900X is a high-performance desktop processor from the Ryzen 9000 Series, built on AMD's Zen 5 architecture and designed for demanding gaming, content creation and multi-threaded workloads. It features 12 CPU cores and 24 threads, providing substantial processing capacity for applications that can take advantage of multiple threads. The processor operates at a 4.4 GHz base clock and can reach up to 5.6 GHz boost clock speeds using AMD Precision Boost 2 technology. With a 120W default TDP, the Ryzen 9 9900X combines high-frequency performance with a modern processor design. It uses the AM5 socket and supports the latest DDR5 memory and PCIe 5.0 connectivity available through compatible platforms.

12 Cores and 24 Threads

With 12 cores and 24 threads through simultaneous multithreading, the Ryzen 9 9900X is designed to handle demanding workloads that require substantial CPU resources. Its 24 processing threads allow compatible software to distribute workloads across the processor, making the chip suitable for applications ranging from modern gaming to video editing, rendering, software development and other multi-threaded tasks. The processor features a 4.4 GHz base frequency and can reach up to 5.6 GHz under suitable operating conditions. AMD also provides support for Precision Boost Overdrive and Curve Optimizer functionality, giving experienced users additional options for tuning processor behaviour. The combination of Zen 5 architecture, high operating frequencies and 12 cores provides a versatile foundation for performance-focused desktop systems.

Large Cache and Zen 5 Architecture

The Ryzen 9 9900X is based on AMD's Zen 5 architecture and features a total of 76MB of combined cache, consisting of 960KB of L1 cache, 12MB of L2 cache and 64MB of L3 cache. This cache hierarchy helps keep frequently accessed data closer to the processor cores, supporting efficient execution across a broad range of workloads. The CPU uses TSMC 4nm FinFET technology for its CPU cores and a 6nm process for the I/O die. Zen 5 also provides support for modern instruction extensions including AVX-512, AVX2, AVX and other supported instruction sets. For users building a modern AM5 system, the Ryzen 9 9900X combines its 12-core design with the architectural improvements and connectivity features associated with AMD's Ryzen 9000 Series platform.

AM5, DDR5 and PCIe 5.0

The Ryzen 9 9900X uses the AM5 socket and supports DDR5 memory through compatible motherboards. The processor provides two memory channels and supports up to 256GB of system memory according to AMD's processor specification, with the exact supported configuration depending on the motherboard and memory setup. It also provides PCIe 5.0 connectivity with 28 native PCIe lanes, of which 24 are usable directly, while additional usable lanes can be provided by compatible motherboard platforms. The processor supports NVMe boot and RAID configurations including RAID 0, RAID 1, RAID 5 and RAID 10. This combination of DDR5 memory and PCIe 5.0 makes the Ryzen 9 9900X suitable for modern AM5 systems using current-generation graphics cards, NVMe storage and other high-speed PCIe hardware.

Integrated Radeon Graphics and Overclocking

The Ryzen 9 9900X includes integrated AMD Radeon Graphics with 2 graphics cores operating at up to 2.2 GHz. This integrated graphics capability can provide basic display output without requiring a discrete graphics card when paired with a compatible motherboard. The processor is also unlocked for overclocking and supports AMD EXPO memory overclocking technology, Precision Boost Overdrive, Curve Optimizer voltage offsets and AMD Ryzen Master software. These features provide additional flexibility for users who want to tune processor performance, memory configuration or operating behaviour. The processor has a 95°C maximum operating temperature and AMD recommends liquid cooling for optimal performance. The thermal solution is not included with the processor, so an appropriate CPU cooler must be selected separately when building a system around the Ryzen 9 9900X.

Built for Modern Performance Systems

The AMD Ryzen 9 9900X provides a strong foundation for modern performance-oriented desktop PCs, combining 12 cores, 24 threads, Zen 5 architecture, up to 5.6 GHz boost and 76MB of combined cache. Its AM5 platform brings support for DDR5 memory and PCIe 5.0, while the integrated Radeon Graphics provides basic graphics capability when a compatible motherboard configuration is used. The processor is compatible with a range of AMD chipsets, including B650, B650E, X670, X670E, B840, B850, X870 and X870E, subject to motherboard support and BIOS compatibility. With a 120W default TDP, unlocked design and support for AMD's performance-tuning technologies, the Ryzen 9 9900X is suited to custom gaming PCs, creative workstations and high-performance desktop systems where multi-core processing capability is important.
