Motherboard B860M Gigabyte Eagle V2

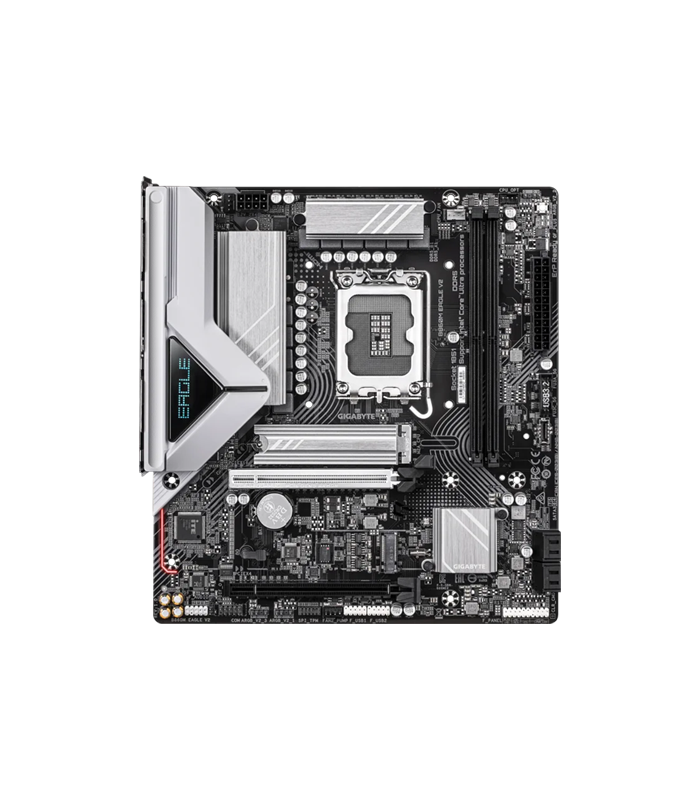

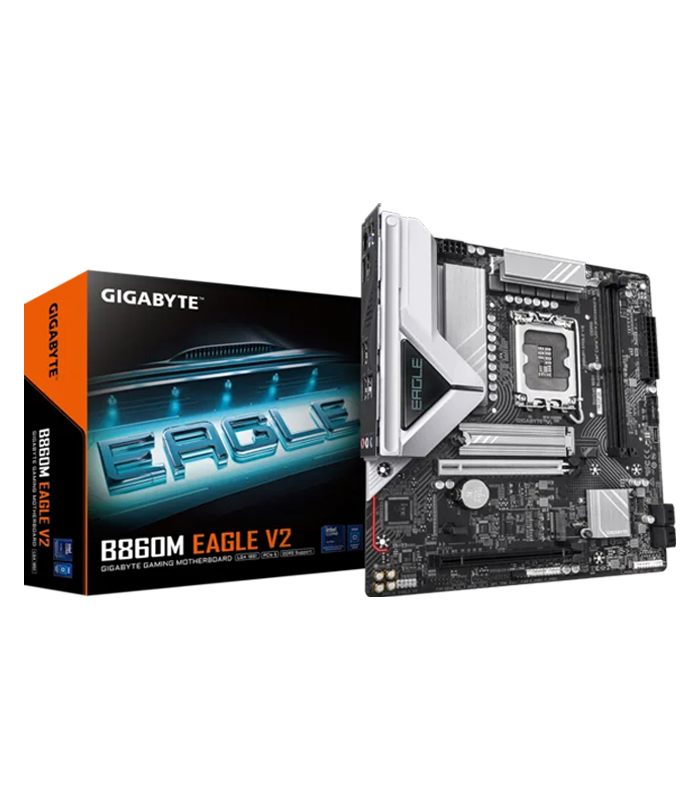

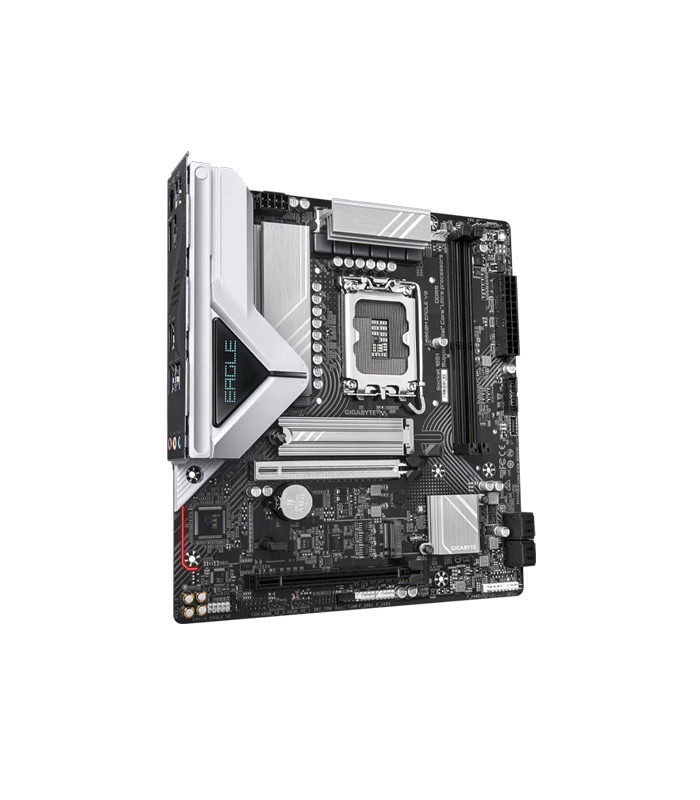

GIGABYTE B860M EAGLE V2 – Compact Intel B860 Motherboard

The GIGABYTE B860M EAGLE V2 is a Micro ATX motherboard designed as a practical foundation for modern Intel-based gaming and desktop PCs. Built around the Intel B860 chipset and LGA1851 socket, it supports compatible Intel processors while providing modern DDR5 memory, PCIe 5.0 expansion and high-speed storage connectivity. Its compact Micro ATX form factor makes it suitable for a wide range of smaller and mid-sized PC cases while retaining the essential expansion features needed for a modern system. With 2 × DDR5 DIMM slots supporting up to 128GB of memory, the motherboard offers a straightforward platform for gaming, productivity and everyday computing builds where efficient use of space is an important consideration.

DDR5 Memory Support Up to 128GB

The motherboard features 2 × DDR5 DIMM slots with support for a maximum of 128GB of system memory. Compatible memory can operate at speeds of up to DDR5-9066 (OC), providing substantial bandwidth for modern gaming and desktop workloads. The two DIMM slots offer a simple memory configuration while still providing support for high-speed DDR5 modules. This makes the B860M EAGLE V2 suitable for systems where a focused memory configuration is preferred without requiring four memory slots. Whether used for gaming, general productivity or everyday applications, the board provides a modern DDR5 platform capable of supporting high memory frequencies when compatible modules and settings are used.

PCIe 5.0 Expansion and M.2 NVMe Storage

For expansion hardware, the GIGABYTE B860M EAGLE V2 provides 1 × PCIe 5.0 x16 slot together with 1 × PCIe 4.0 x4 slot. The primary PCIe 5.0 x16 interface provides a high-bandwidth connection for a compatible graphics card or other supported expansion hardware. Storage connectivity includes 2 × M.2 NVMe slots, allowing compatible high-speed NVMe SSDs to be installed directly onto the motherboard. In addition, the board includes 4 × SATA 6Gb/s ports for compatible SATA storage devices. This combination gives builders the flexibility to configure fast NVMe storage alongside additional SATA drives for extra capacity, games, applications and personal files within a compact Micro ATX system.

2.5GbE Wired Networking

The B860M EAGLE V2 includes 2.5GbE LAN for high-speed wired network connectivity. This provides greater network bandwidth than traditional Gigabit Ethernet when paired with compatible networking equipment, making it suitable for modern home networks and demanding connected PC workloads. The motherboard does not include built-in Wi-Fi or Bluetooth, allowing the system configuration to remain focused on wired networking. Users who require wireless connectivity can select compatible expansion or external solutions according to their requirements. For systems that already use Ethernet, the integrated 2.5GbE connection provides a straightforward way to connect the PC to a compatible router, switch or network infrastructure for gaming, downloads, file transfers and general online use.

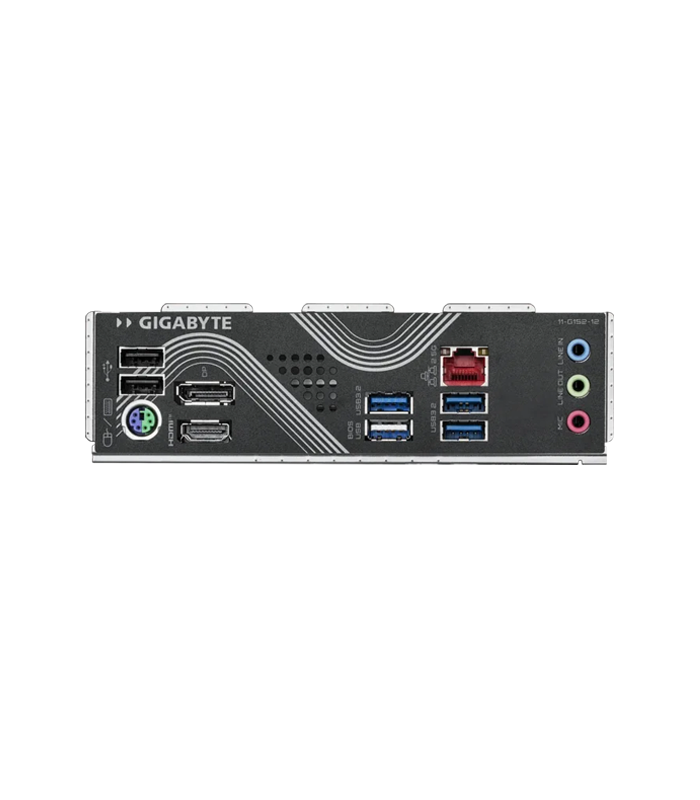

HDMI 2.1, DisplayPort 2.1 and Audio Connectivity

The motherboard provides integrated display connectivity through 1 × HDMI 2.1 and 1 × DisplayPort 2.1. These outputs provide options for connecting compatible displays when the installed processor supports integrated graphics. For audio, the board uses Realtek High Definition Audio with support for 7.1-channel audio, providing a suitable foundation for gaming headsets, speakers and compatible multi-channel audio setups. The combination of modern display outputs and integrated audio connectivity makes the motherboard suitable for a variety of desktop configurations. It also reduces the need for additional expansion hardware for systems that can make use of the processor's supported integrated display capabilities.

USB Connectivity in a Micro ATX Platform

The GIGABYTE B860M EAGLE V2 provides a selection of USB connectivity for modern peripherals and accessories, including USB 3.2 Gen 1, USB 2.0 and a front USB-C connection. This gives builders options for connecting keyboards, mice, controllers, storage devices and other USB peripherals while also supporting a modern front-panel USB-C connection on compatible cases. Combined with the motherboard's PCIe 5.0 expansion, two M.2 NVMe slots, four SATA ports and 2.5GbE networking, the B860M EAGLE V2 provides a practical collection of features for a compact Intel PC. Its Micro ATX design makes it particularly suitable for builds where space efficiency and essential modern connectivity are key priorities.
