Motherboard B840M Gigabyte D3HP Wifi

GIGABYTE B840M D3HP WIFI6E

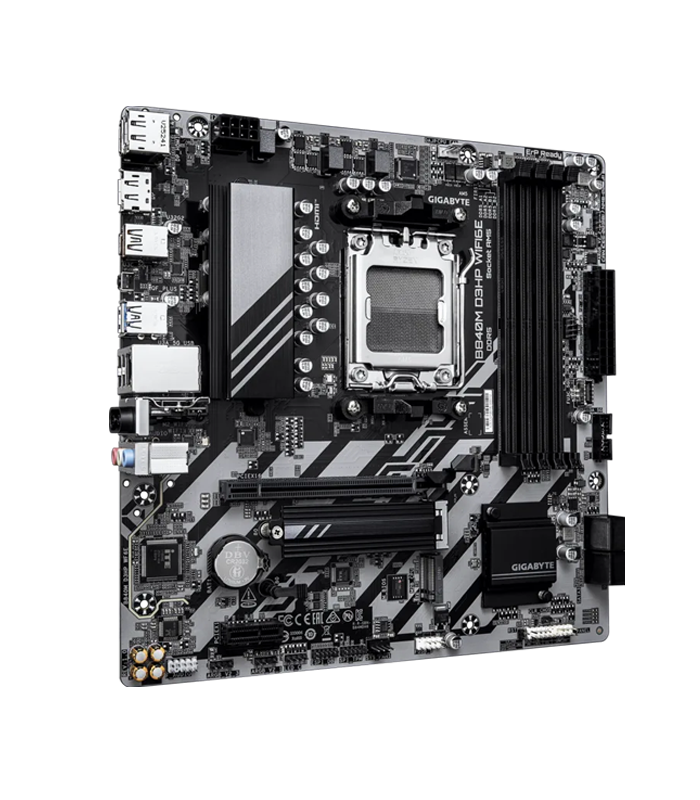

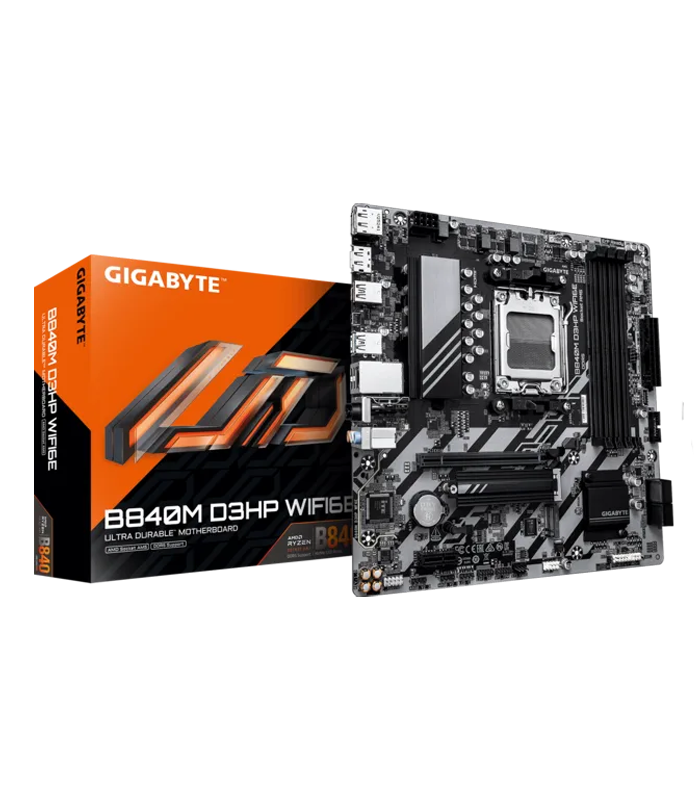

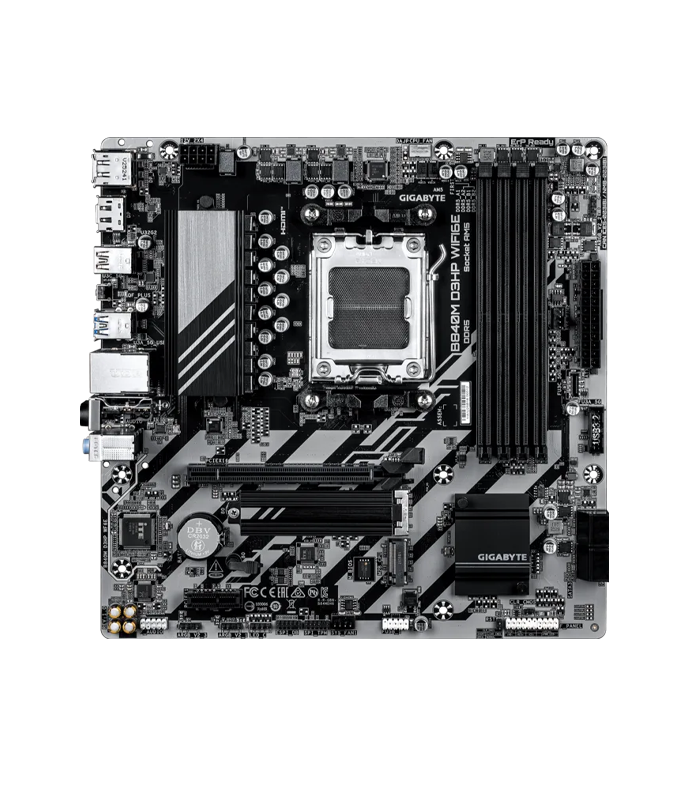

The GIGABYTE B840M D3HP WIFI6E is a Micro ATX motherboard designed for modern AMD systems using the AM5 socket and AMD B840 chipset. Its compact form factor makes it suitable for space-conscious gaming PCs and desktop builds while retaining a strong selection of modern memory, storage and networking features. The motherboard provides four DDR5 DIMM slots supporting up to 256GB of memory, with speeds of up to DDR5-8200 (OC) for compatible configurations. Expansion includes a PCIe 4.0 x16 slot and PCIe 3.0 x1 slot, while two M.2 PCIe 4.0 x4 slots provide high-speed NVMe storage connectivity. Integrated 2.5GbE LAN, Wi-Fi 6E and Bluetooth 5.3 further enhance connectivity, making this a versatile foundation for a modern AMD PC.

DDR5 Memory Support

The motherboard features four DDR5 DIMM slots, providing considerable flexibility when configuring system memory. It supports a maximum capacity of 256GB, giving users plenty of room for gaming, multitasking and demanding desktop workloads. Supported memory speeds reach up to DDR5-8200 (OC), allowing compatible high-speed DDR5 memory modules to operate at elevated frequencies when configured accordingly. The four-slot layout also provides a practical upgrade path, allowing memory capacity to be expanded without being restricted to only two DIMM positions. Built around the AM5 platform and AMD B840 chipset, the GIGABYTE B840M D3HP WIFI6E provides a modern memory foundation for AMD-based systems. Its Micro ATX format keeps the motherboard compact while still accommodating four memory slots, making it suitable for users who want a smaller system without sacrificing useful memory expansion capability.

PCIe Expansion and NVMe Storage

For expansion, the GIGABYTE B840M D3HP WIFI6E includes one PCIe 4.0 x16 slot, providing a high-bandwidth interface for a compatible graphics card or other supported PCIe hardware. A secondary PCIe 3.0 x1 slot provides additional expansion capability for compatible devices. Storage connectivity is provided by two M.2 PCIe 4.0 x4 slots, allowing users to install modern NVMe SSDs directly onto the motherboard. These M.2 connections provide a fast and compact storage solution while helping maintain a clean internal system layout. In addition, the motherboard includes four SATA 6Gb/s ports, providing further connectivity for compatible SATA storage devices. This combination gives users multiple options when designing their storage configuration, from systems focused on fast NVMe drives to builds combining M.2 SSDs with additional SATA-based storage for increased capacity.

2.5GbE LAN and Wi-Fi 6E

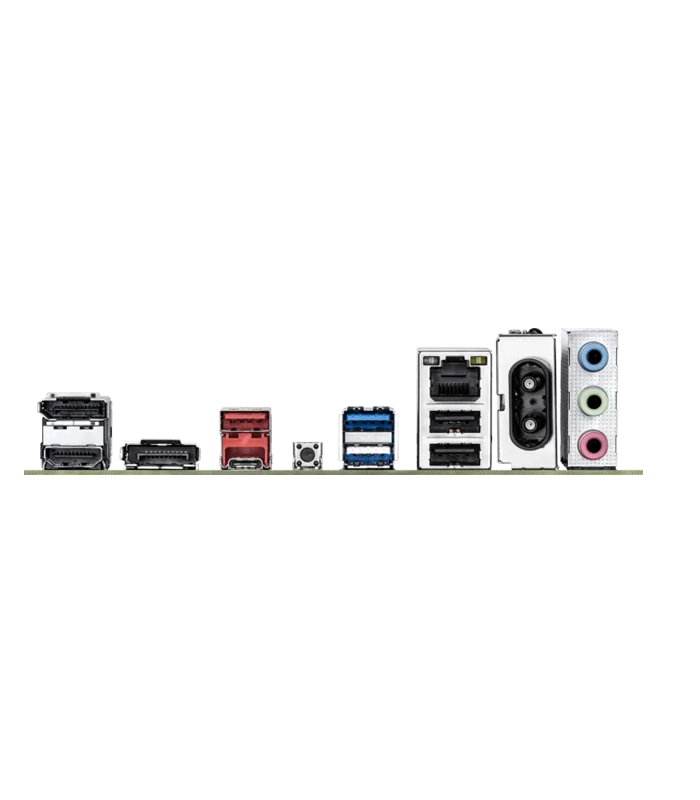

Networking is integrated directly into the motherboard, providing both wired and wireless connectivity options. The 2.5GbE LAN interface offers a high-speed wired network connection for compatible networking equipment, while integrated Wi-Fi 6E provides a modern wireless alternative. The motherboard also includes Bluetooth 5.3, allowing compatible wireless peripherals and accessories to connect directly to the system without requiring a separate Bluetooth adapter. This combination provides flexibility for different desktop environments, whether the PC is connected through Ethernet or positioned where wireless networking is more convenient. For a gaming PC, the integrated networking hardware also helps simplify the overall build by reducing the need for additional networking expansion cards. With 2.
