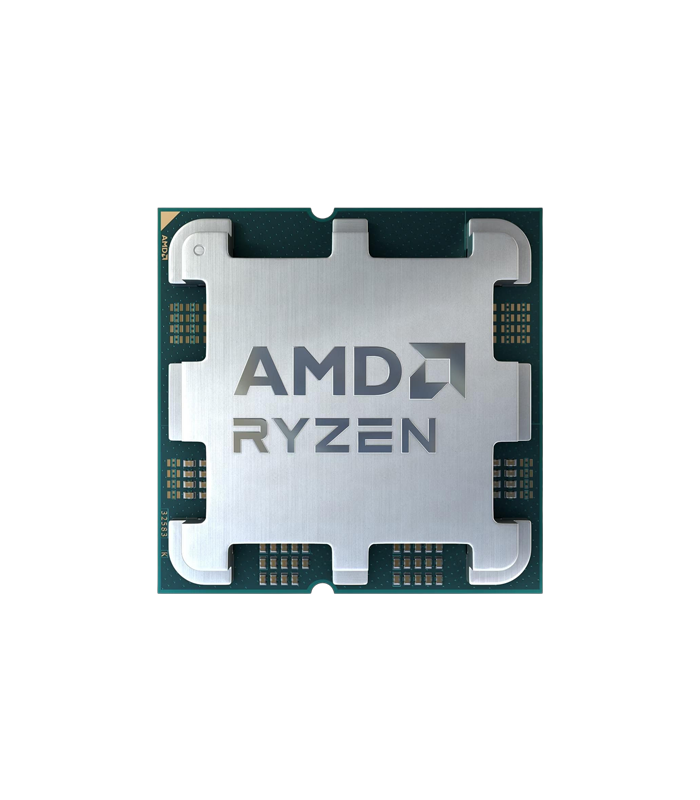

Processor AMD Ryzen 7 7800X3D Tray

AMD Ryzen 7 7800X3D – High-Performance Gaming Processor

The AMD Ryzen 7 7800X3D is an 8-core, 16-thread desktop processor built around AMD’s Zen 4 architecture and designed with gaming performance in mind. It combines a 4.2 GHz base clock with boost speeds of up to 5.0 GHz and AMD’s advanced 3D V-Cache technology. With 96MB of L3 cache and 104MB of total cache, the processor provides a large pool of high-speed cache that can benefit compatible gaming workloads. Built for the AM5 platform, the Ryzen 7 7800X3D also supports DDR5 memory and modern PCIe connectivity, making it a strong foundation for high-performance gaming PCs and custom systems.

8 Cores, 16 Threads and 3D V-Cache

The Ryzen 7 7800X3D features 8 cores and 16 threads, providing the processing capability required for modern games, multitasking and demanding desktop applications. Its defining feature is AMD 3D V-Cache technology, which places additional cache directly within the processor package. The CPU includes 96MB of L3 cache, significantly increasing the amount of data that can be kept close to the processing cores. This architecture is particularly useful for gaming workloads that can benefit from larger cache capacity. Combined with Zen 4 processing cores and boost frequencies of up to 5.0 GHz, the 7800X3D provides a specialised design focused heavily on responsive gaming performance.

Modern AM5 Platform with DDR5

The Ryzen 7 7800X3D uses the AMD AM5 socket and supports modern DDR5 memory through compatible AM5 motherboards. AMD EXPO technology is supported, allowing compatible DDR5 memory kits to be configured using supported performance profiles. The processor works with a wide range of AM5 chipsets, including B650, B650E, X670, X670E, B850 and X870-series platforms. This gives builders flexibility when selecting a motherboard and memory configuration for a new gaming PC. The AM5 platform also provides access to modern expansion and storage technologies, making the 7800X3D suitable for performance-focused systems built around current-generation components.

PCIe Connectivity for Modern Components

The Ryzen 7 7800X3D is designed to work with modern PCIe connectivity through the AM5 platform, providing the bandwidth required for dedicated graphics cards, high-speed NVMe storage and other expansion hardware. A compatible motherboard determines the exact PCIe configuration and available generations for individual expansion slots and M.2 storage connections. The processor is intended for systems using a dedicated graphics card, making it a natural choice for gaming PCs where the GPU is a major part of the overall performance configuration. Pairing the processor with fast DDR5 memory and a modern graphics card allows the platform to be configured as a high-performance gaming system.

Precision Boost and Advanced Tuning

The Ryzen 7 7800X3D supports AMD technologies including Precision Boost 2, Precision Boost Overdrive, Curve Optimizer, AMD EXPO and Ryzen Master. These technologies provide additional options for managing processor performance and system behaviour on compatible platforms. The processor has a 120W default TDP, making an appropriate CPU cooling solution important when building a system around it. AMD's 3D V-Cache design also means that cooling and motherboard configuration should be selected with the processor's intended operating characteristics in mind. For custom PC builders, the combination of Zen 4 architecture, large cache capacity and AM5 platform support provides a flexible basis for a dedicated gaming system.

A Gaming-Focused Foundation for AM5 PCs

The AMD Ryzen 7 7800X3D combines 8 cores, 16 threads, Zen 4 architecture and AMD 3D V-Cache technology in a processor designed specifically around demanding gaming workloads. With a 4.2 GHz base clock, up to 5.0 GHz boost clock, 96MB of L3 cache and 120W TDP, it offers a distinctive combination of high-frequency CPU performance and substantial cache capacity. Its AM5 socket provides access to DDR5 memory and modern motherboard technologies, making it suitable for custom gaming PCs built with current-generation components. For builders looking to create a dedicated high-performance gaming system, the 7800X3D provides a specialised CPU platform around which the rest of the system can be configured.
