Motherboard Gigabyte GA-B840M Gaming Plus Wifi

GIGABYTE B840M GAMING PLUS WIFI6E

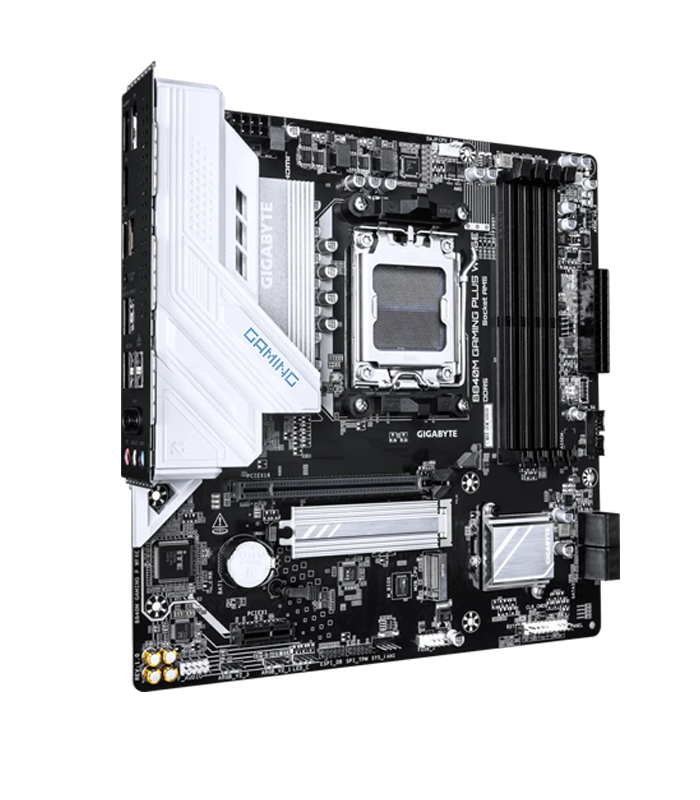

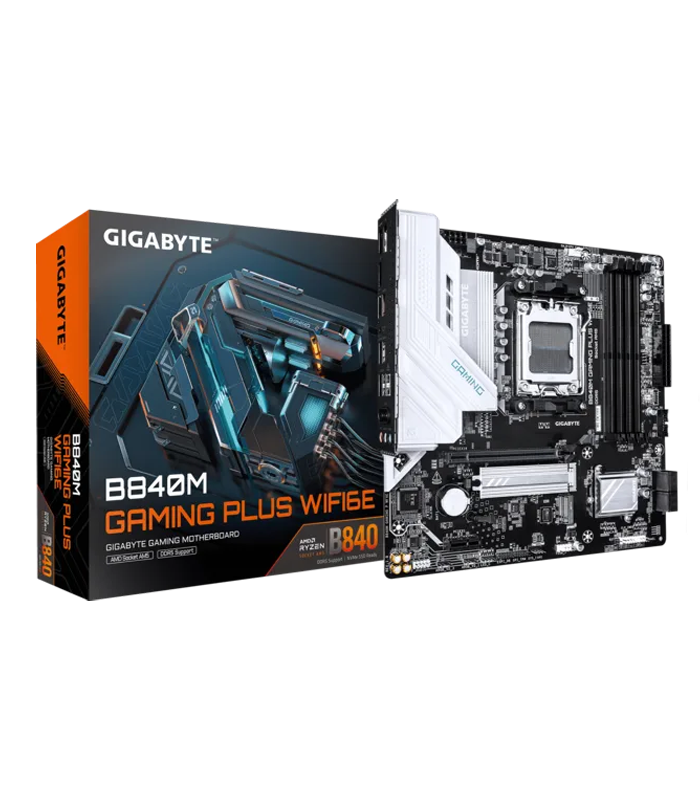

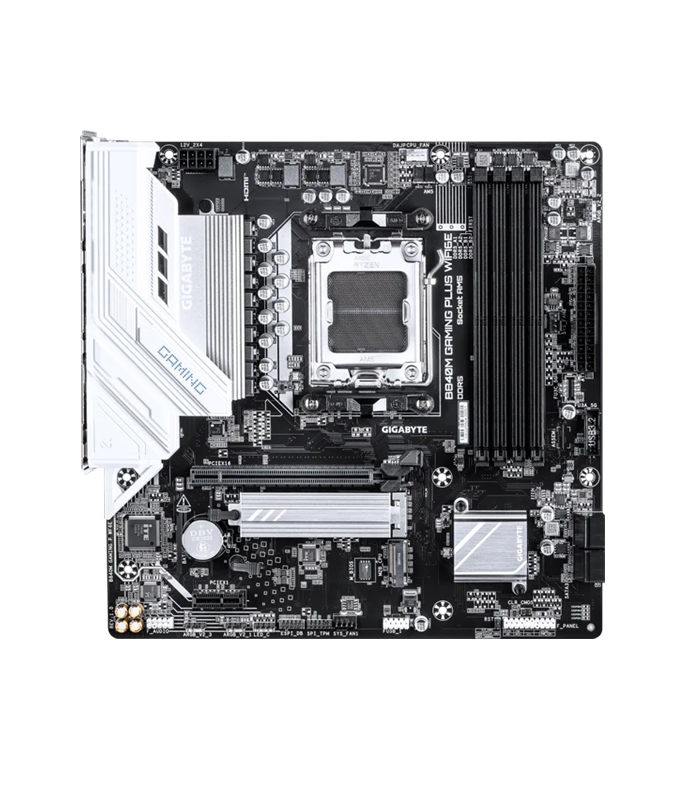

The GIGABYTE B840M GAMING PLUS WIFI6E is a compact Micro ATX motherboard designed for modern AMD AM5 systems using the AMD B840 chipset. Its four DDR5 DIMM slots support up to 256GB of system memory, with memory speeds reaching up to DDR5-8200 (OC) for compatible configurations. The board combines a compact form factor with practical expansion and storage options, including a PCIe 4.0 x16 slot, a PCIe 3.0 x1 slot and two M.2 PCIe 4.0 x4 slots. Four SATA 6Gb/s ports provide additional storage connectivity. Integrated 2.5GbE LAN, Wi-Fi 6E and Bluetooth provide flexible networking options, while Realtek High Definition Audio with 7.1-channel support completes the core feature set for a modern gaming or desktop PC.

High-Capacity DDR5 Memory Support

The motherboard provides four DDR5 DIMM slots, giving users a flexible platform for building systems with substantial memory capacity. The maximum supported memory is 256GB, allowing the board to accommodate configurations designed for demanding multitasking, gaming and desktop workloads. Supported memory speeds reach up to DDR5-8200 (OC), providing high-frequency memory support for compatible DDR5 modules when configured using the appropriate settings. Having four memory slots also provides more flexibility when planning future upgrades, as users can begin with a smaller memory configuration and expand the system later. Combined with the AM5 socket and AMD B840 chipset, the memory platform provides a modern foundation for AMD-based desktop systems. The Micro ATX form factor keeps the overall motherboard footprint compact while still offering four DIMM slots and a useful selection of connectivity and expansion features.

PCIe 4.0 and NVMe Storage

For graphics and expansion, the GIGABYTE B840M GAMING PLUS WIFI6E includes one PCIe 4.0 x16 slot, providing a high-bandwidth interface for a compatible graphics card or other supported PCIe hardware. A secondary PCIe 3.0 x1 slot provides additional expansion capability for compatible devices. Storage connectivity includes two M.2 PCIe 4.0 x4 slots, allowing users to install modern NVMe SSDs directly onto the motherboard. These M.2 connections provide a clean and compact storage solution while keeping high-speed drives integrated within the main system layout. The motherboard also includes four SATA 6Gb/s ports, giving users additional options for compatible SATA storage devices. This combination allows a system to use multiple NVMe drives alongside SATA storage, making the board suitable for gaming PCs and general desktop systems where both fast primary storage and additional capacity are required.

2.5GbE LAN and Wi-Fi 6E

Networking is integrated directly into the motherboard, with both wired and wireless options available. The board features 2.5GbE LAN, providing a high-speed wired network interface for compatible network equipment and connections. For wireless networking, integrated Wi-Fi 6E provides a modern wireless option without requiring a separate networking expansion card. The motherboard also includes Bluetooth, allowing compatible wireless peripherals and accessories to connect directly to the system. This combination gives users flexibility when configuring their desktop environment, whether they prefer a wired Ethernet connection or wireless networking. For gaming PCs, the integrated networking features can also help simplify the build by reducing the need for additional networking hardware. With 2.5GbE LAN, Wi-Fi 6E and Bluetooth available as part of the motherboard platform, the B840M GAMING PLUS WIFI6E provides a versatile connectivity foundation for modern AMD systems in a compact Micro ATX format.

Compact Micro ATX Platform

The Micro ATX form factor makes the GIGABYTE B840M GAMING PLUS WIFI6E suitable for systems where motherboard size and efficient internal space are important considerations. Despite its compact format, the board provides four DDR5 DIMM slots, one PCIe 4.0 x16 slot, one PCIe 3.0 x1 slot, two M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s connections. This creates a balanced selection of expansion and storage interfaces for a wide range of desktop configurations. The four memory slots are particularly useful for users who want more flexibility when upgrading system memory over time. At the same time, the two M.2 slots allow fast NVMe storage to be installed without occupying traditional drive bays. Combined with integrated 2.5GbE networking, Wi-Fi 6E and Bluetooth, the motherboard provides many of the essential features required for a modern AMD PC while maintaining a smaller Micro ATX footprint.

7.1-Channel HD Audio

Audio connectivity is provided by Realtek High Definition Audio with 7.1-channel support, giving the motherboard integrated multi-channel audio capability for gaming, entertainment and everyday desktop use. The 7.1-channel configuration provides support for compatible multi-channel audio equipment while also serving more conventional headphone and speaker setups. This integrated audio solution means a typical system can be built without requiring a separate sound card for standard audio requirements. Alongside its audio features, the motherboard combines the AMD B840 chipset, AM5 socket, DDR5 support up to 256GB, PCIe 4.0 expansion, two M.2 PCIe 4.0 x4 slots, four SATA ports, 2.5GbE LAN, Wi-Fi 6E and Bluetooth. The result is a compact Micro ATX platform designed to provide a practical combination of memory, storage, networking, expansion and audio connectivity for modern AMD desktop and gaming systems.
