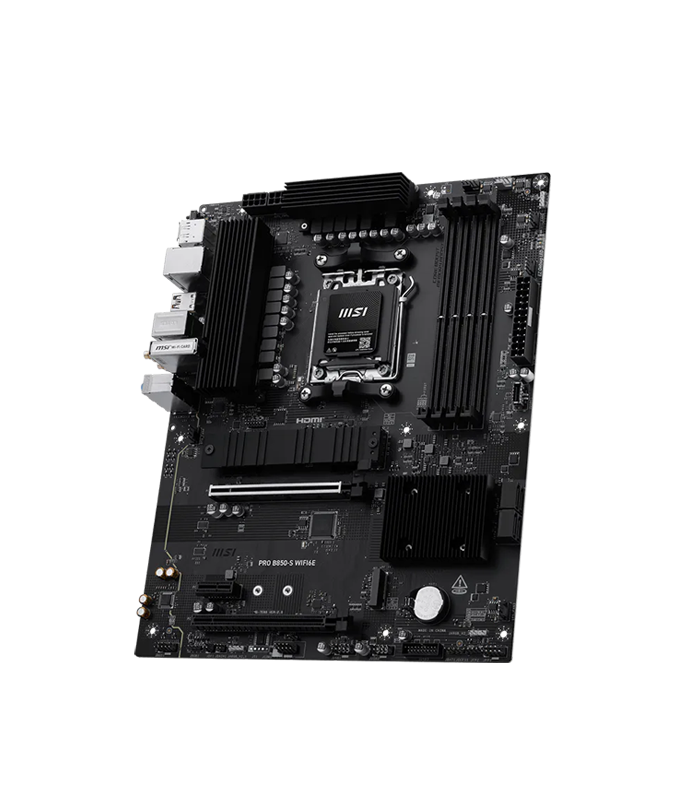

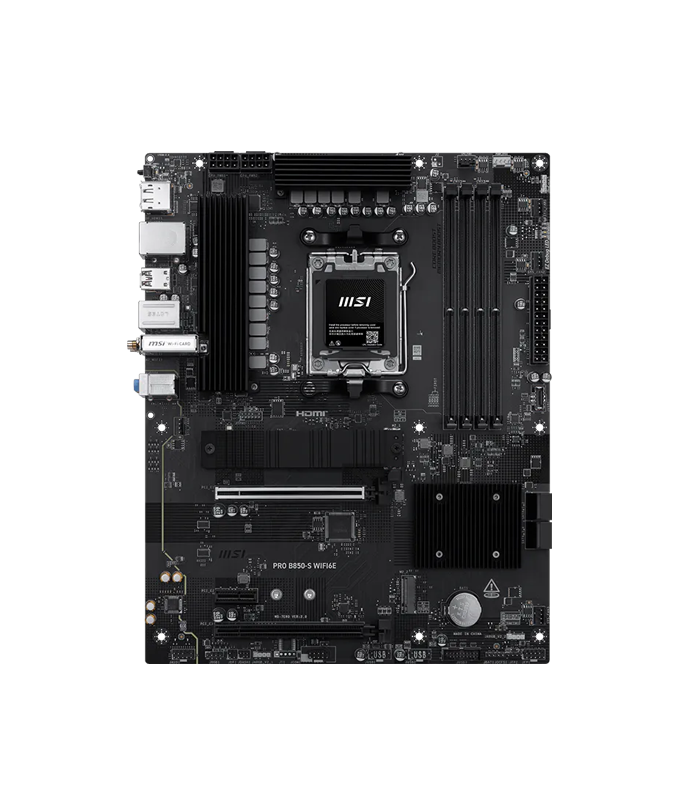

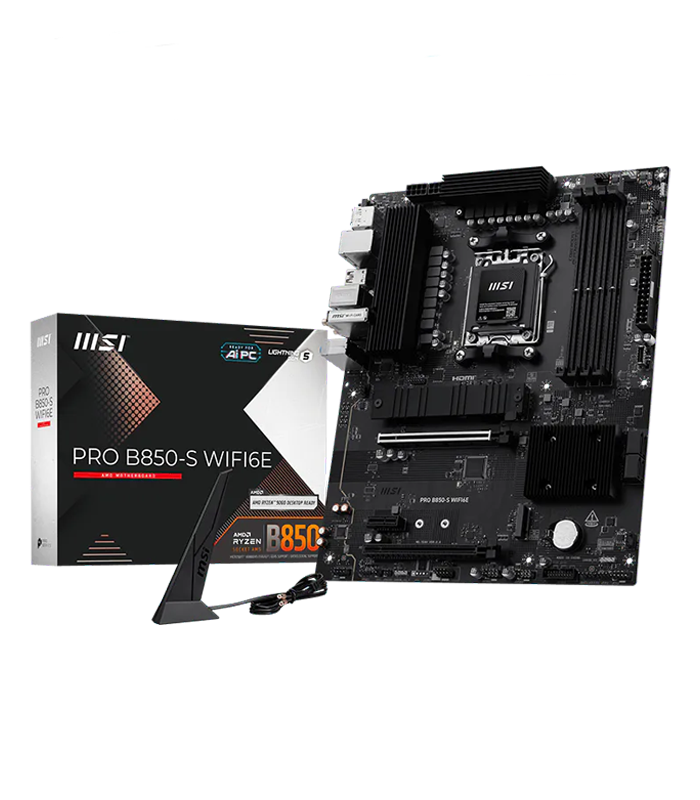

MSI PRO B850-S WIFI6E – ATX AM5 Motherboard

The MSI PRO B850-S WIFI6E is an ATX motherboard designed for modern AMD Ryzen gaming PCs, workstations and high-performance desktop systems. Built around the AMD B850 chipset and AM5 socket, it supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors. The board combines modern connectivity, high-speed storage support and DDR5 memory compatibility in a practical design suited to a wide range of PC builds. With features including Wi-Fi 6E, 2.5G LAN, PCIe 4.0 and PCIe 5.0 M.2 connectivity, the PRO B850-S WIFI6E provides a strong platform for users looking to build a current-generation AMD system with room for future upgrades.

AMD AM5 and DDR5 Memory Support

The motherboard supports AMD Ryzen 9000, 8000 and 7000 Series processors using the AM5 socket and features four DDR5 DIMM slots operating in dual-channel mode. Compatible memory can be configured at speeds of up to 8200+ MT/s through overclocking, while standard JEDEC support is also provided. The board supports up to 256GB of DDR5 memory, giving users plenty of capacity for demanding gaming, multitasking and productivity applications. AMD EXPO support makes it easier to configure compatible high-performance memory kits, while MSI's Memory Boost design is intended to provide stable and reliable memory signal performance.

PCIe and High-Speed NVMe Storage

The MSI PRO B850-S WIFI6E provides a modern expansion platform with a primary PCIe 4.0 x16 slot for a dedicated graphics card, alongside additional PCIe slots for expansion hardware. Storage connectivity includes two M.2 slots, with the primary M.2 slot supporting up to PCIe 5.0 x4 and the secondary slot supporting up to PCIe 4.0 x4. Four SATA 6Gb/s ports are also available for additional SSDs and hard drives. This combination allows builders to use an extremely fast PCIe 5.0 NVMe drive while retaining additional storage options for larger game libraries and everyday files.

Wi-Fi 6E and 2.5G Networking

Fast networking is a major part of the PRO B850-S WIFI6E platform. The motherboard includes an integrated Realtek 8125 2.5G LAN controller for high-speed wired networking, providing greater bandwidth than conventional Gigabit Ethernet. Wireless connectivity is handled by an integrated Wi-Fi 6E solution supporting the 2.4GHz, 5GHz and 6GHz bands, with support for channels up to 160MHz and speeds of up to 2.4Gbps under supported conditions. Bluetooth 5.3 is also included, providing convenient wireless connectivity for compatible peripherals, controllers, headsets and other devices.

Modern USB Connectivity and Audio

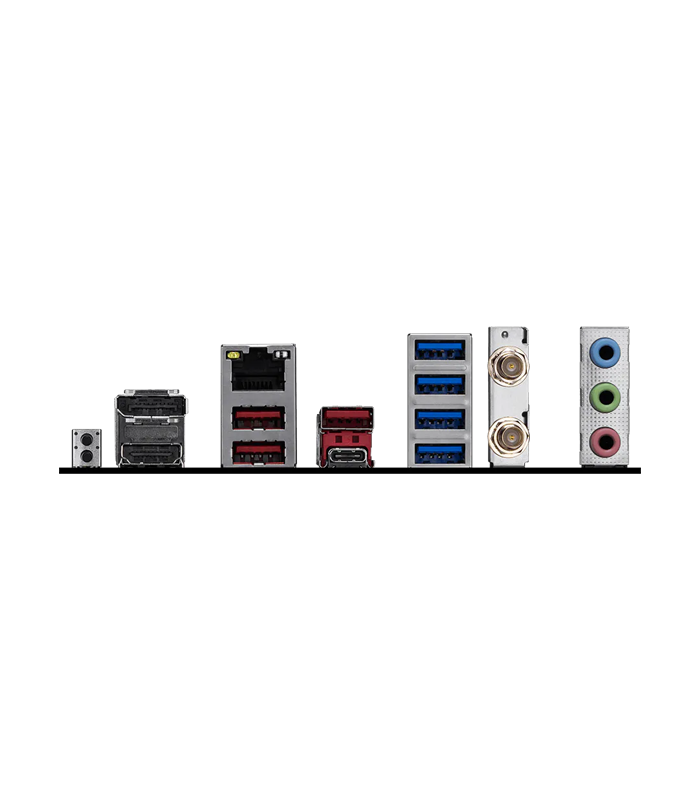

The rear and internal connectivity of the motherboard is designed for modern peripherals and accessories. The board provides USB 10Gbps Type-A and Type-C connectivity alongside additional USB 5Gbps and USB 2.0 ports. Internal headers provide further options for connecting front-panel USB ports and other accessories. For audio, the motherboard uses a Realtek ALC897 codec with 7.1-channel High Definition Audio, providing an integrated solution for gaming, entertainment and everyday desktop use. Display connectivity includes HDMI 2.1 and DisplayPort, with processor graphics required for these outputs.

Practical Features for PC Builders

MSI has equipped the PRO B850-S WIFI6E with a range of features intended to simplify installation, configuration and maintenance. These include EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna and Flash BIOS functionality, helping make component installation and BIOS updates more convenient. The motherboard also features a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors and thermal features including M.2 Shield Frozr and 7W/mK MOSFET thermal pads. With its ATX form factor, AM5 support, DDR5 memory, PCIe 5.0 storage, 2.5G networking and Wi-Fi 6E, the MSI PRO B850-S WIFI6E provides a versatile foundation for modern AMD gaming and performance-focused PCs.
