Processor AMD Ryzen 7 9800X3D Tray

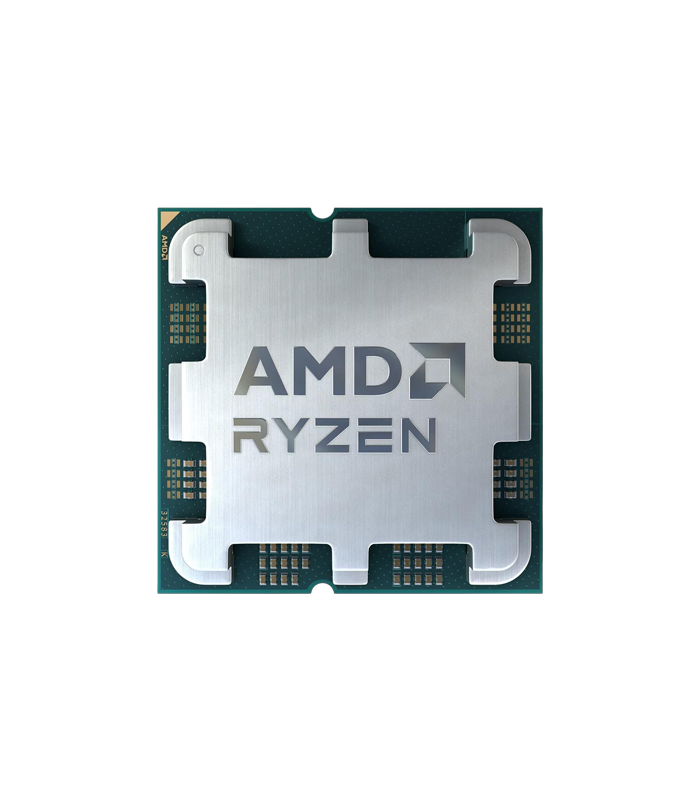

AMD Ryzen 7 9800X3D Tray – Advanced Gaming Performance

The AMD Ryzen 7 9800X3D is a high-performance desktop processor built on AMD's Zen 5 architecture and enhanced with second-generation AMD 3D V-Cache technology. Designed with gaming and demanding desktop workloads in mind, it combines 8 CPU cores and 16 threads with a 4.7 GHz base clock and boost speeds of up to 5.2 GHz. The processor features 104MB of total cache, consisting of 8MB of L2 cache and 96MB of L3 cache, providing a large on-chip memory resource for demanding applications. With a 120W default TDP and AM5 socket, the Ryzen 7 9800X3D provides a modern foundation for high-performance gaming PCs and enthusiast desktop systems requiring strong CPU performance.

8 Cores, 16 Threads and Zen 5

The Ryzen 7 9800X3D uses 8 high-performance Zen 5 cores with simultaneous multithreading, providing 16 processing threads for gaming, productivity and multi-threaded workloads. Its 4.7 GHz base frequency can increase to up to 5.2 GHz boost through AMD Precision Boost 2 technology when operating conditions allow. The processor is manufactured using a TSMC 4nm FinFET process for the CPU cores, while the I/O die uses a 6nm FinFET process. The Zen 5 architecture also supports a broad range of modern instruction extensions, including AVX, AVX2 and AVX-512. This combination of high clock speeds, eight cores and sixteen threads provides the processor with the processing capacity needed for modern games as well as applications such as content creation, software development and other demanding desktop workloads.

Second-Generation 3D V-Cache

A defining feature of the Ryzen 7 9800X3D is its second-generation AMD 3D V-Cache technology. The processor provides 96MB of L3 cache, contributing to a total cache capacity of 104MB when combined with its 8MB of L2 cache. AMD designed the 9800X3D with the additional cache technology specifically to improve the processor's ability to keep frequently accessed game data close to the CPU cores. The second-generation implementation also places the additional cache beneath the processor's core complex, allowing the cores to sit closer to the cooling solution. AMD introduced the 9800X3D as a gaming-focused processor combining this cache architecture with Zen 5 and high clock speeds. The result is a processor platform built around high-frequency CPU cores and a large on-chip cache resource.

AM5 Platform and PCIe 5.0

The Ryzen 7 9800X3D uses the AM5 socket and supports modern platform technologies including DDR5 memory and PCIe 5.0. The processor provides two memory channels and supports up to 256GB of system memory, subject to motherboard and memory configuration. It features 28 native PCIe lanes, with 24 usable lanes, providing high-speed connectivity for compatible graphics cards, NVMe storage and other PCIe devices. The processor also supports NVMe boot and RAID configurations including RAID 0, RAID 1, RAID 5 and RAID 10. Compatible chipsets include A620, B650, B650E, X670, X670E, B840, B850, X870 and X870E. This makes the Ryzen 7 9800X3D part of AMD's modern AM5 ecosystem and allows it to be paired with a wide range of current-generation motherboards.

Unlocked Performance and Integrated Graphics

The Ryzen 7 9800X3D is unlocked for overclocking and supports AMD performance-tuning technologies including AMD EXPO memory overclocking, Precision Boost Overdrive, Curve Optimizer and AMD Ryzen Master. This gives enthusiasts additional control over processor and memory behaviour when configuring a compatible system. The processor also includes integrated AMD Radeon Graphics with 2 graphics cores operating at up to 2.2 GHz, providing basic graphics capability through a compatible motherboard. The Ryzen 7 9800X3D has a 120W default TDP and a maximum operating temperature of 95°C. AMD specifies that a thermal solution is not included and recommends liquid cooling for optimal performance. As this is the tray version, it is supplied as a tray processor rather than a boxed retail package, making it particularly suitable for system builders and custom PC configurations.

Built for High-End Gaming PCs

The AMD Ryzen 7 9800X3D Tray combines Zen 5 architecture, 3D V-Cache technology, high clock speeds and modern AM5 platform connectivity into a processor designed for demanding desktop systems. Its 8 cores and 16 threads, up to 5.2 GHz boost frequency and 104MB total cache provide a strong foundation for gaming and productivity workloads, while DDR5 and PCIe 5.0 support enable it to work with modern memory, graphics and storage hardware. The processor's unlocked design also supports AMD's tuning technologies for users who want additional configuration flexibility. With integrated Radeon Graphics and compatibility with a broad selection of AM5 chipsets, the Ryzen 7 9800X3D can form the core of a modern performance-focused PC. The tray format makes this version especially appropriate for custom builders and system integrators.
