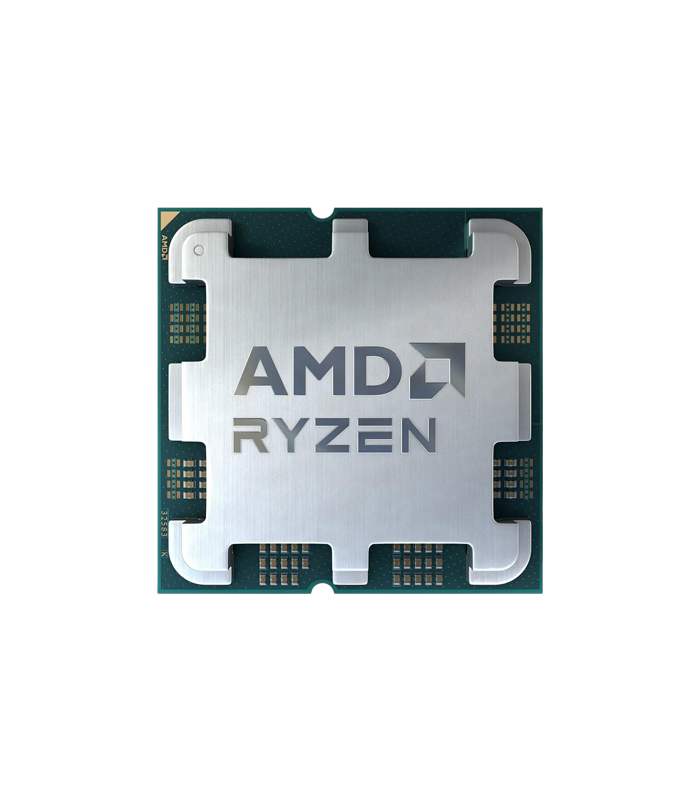

Processor AMD Ryzen 7 8700F Tray

AMD Ryzen 7 8700F – Zen 4 Performance for Gaming PCs

The AMD Ryzen 7 8700F is an 8-core, 16-thread desktop processor built on AMD’s Zen 4 architecture and the modern AM5 platform. With a 4.1 GHz base clock and boost speeds of up to 5.0 GHz, it delivers strong processing performance for gaming, multitasking, content creation and demanding everyday workloads. The processor uses a 4nm FinFET manufacturing process and has a 65W default TDP, providing a balance between performance and power efficiency. With DDR5 memory support and PCIe 4.0 connectivity, the Ryzen 7 8700F is designed for modern desktop systems built around a dedicated graphics card.

8 Cores and 16 Threads

With 8 CPU cores and 16 threads, the Ryzen 7 8700F provides additional processing capacity for applications that can take advantage of multiple threads. Its Zen 4 architecture combines strong single-core performance with multi-threaded capability, making the processor suitable for gaming while running background applications, streaming, communication software and other workloads. The CPU features 8MB of L2 cache and 16MB of L3 cache, while its boost frequency of up to 5.0 GHz allows it to increase clock speeds when additional performance is required. This combination makes the Ryzen 7 8700F a versatile choice for balanced gaming and productivity-focused PC builds.

AM5 Platform and DDR5 Memory

The Ryzen 7 8700F uses the AMD AM5 socket and supports modern DDR5 memory through a dual-channel memory interface. AMD specifies support for up to 256GB of DDR5 memory, depending on motherboard and memory configuration. Compatible systems can also take advantage of AMD EXPO memory technology for supported high-performance DDR5 kits. The processor is compatible with a range of AM5 chipsets, including A620, B650, B650E, X670, X670E, B850 and X870-series platforms, giving system builders flexibility when selecting a motherboard. This makes the Ryzen 7 8700F suitable for new DDR5-based gaming and performance systems.

PCIe 4.0 and High-Speed Connectivity

The Ryzen 7 8700F supports PCIe 4.0 with up to 20 native PCIe lanes, including 16 usable lanes. This provides the bandwidth required for modern graphics cards and high-speed NVMe storage on compatible AM5 motherboards. The processor also supports NVMe boot, RAID 0 and RAID 1 configurations. As an F-series processor, the Ryzen 7 8700F requires a discrete graphics card, making it particularly well suited to dedicated gaming PCs. AMD also supports Smart Access Memory on compatible systems, allowing supported Ryzen processors and Radeon graphics cards to work together with access to additional system memory resources.

Unlocked for Overclocking and Ryzen AI

The Ryzen 7 8700F is unlocked for overclocking and supports AMD technologies including Precision Boost Overdrive, Curve Optimizer, AMD EXPO and Ryzen Master. It also features AMD Ryzen AI technology with performance of up to 16 TOPS, providing dedicated AI processing capabilities for supported applications. With a 65W default TDP and a maximum operating temperature of 95°C, the processor can be incorporated into a wide range of cooling configurations. Its combination of Zen 4 CPU performance and integrated AI capabilities makes it a flexible option for modern systems that need more than gaming performance alone.

A Powerful Foundation for Custom Gaming PCs

The AMD Ryzen 7 8700F combines 8 cores, 16 threads, Zen 4 architecture and boost speeds of up to 5.0 GHz in an efficient AM5 desktop processor. With 24MB of total cache, DDR5 memory support, PCIe 4.0 connectivity and a 65W TDP, it provides a strong foundation for gaming, multitasking and productivity systems. Because it requires a dedicated graphics card, it is an ideal fit for custom PCs built around a discrete GPU. The tray version is supplied in OEM/tray format, making it well suited to system builders and custom PC configurations where the processor is installed as part of a complete build.
