Air Cooler Xilence M704 Performance A+

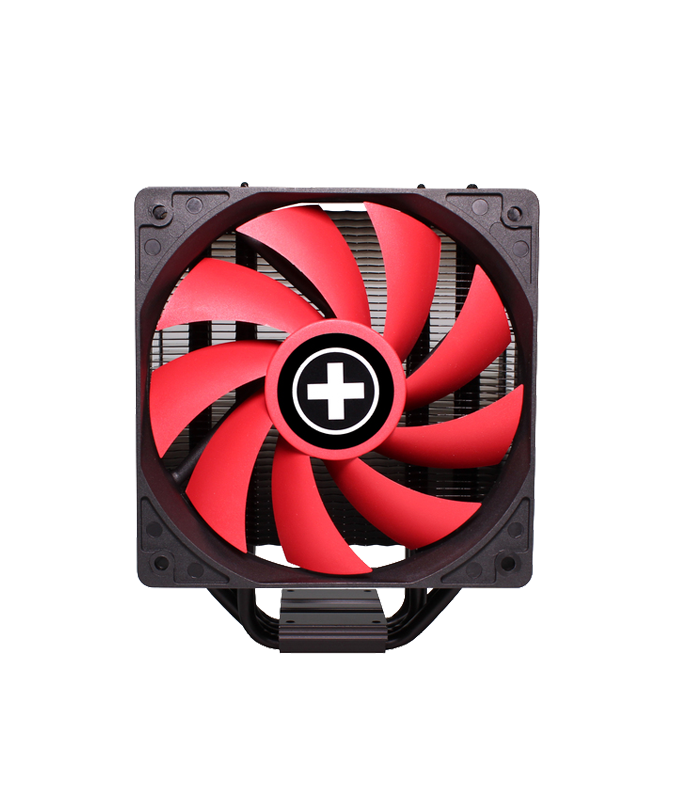

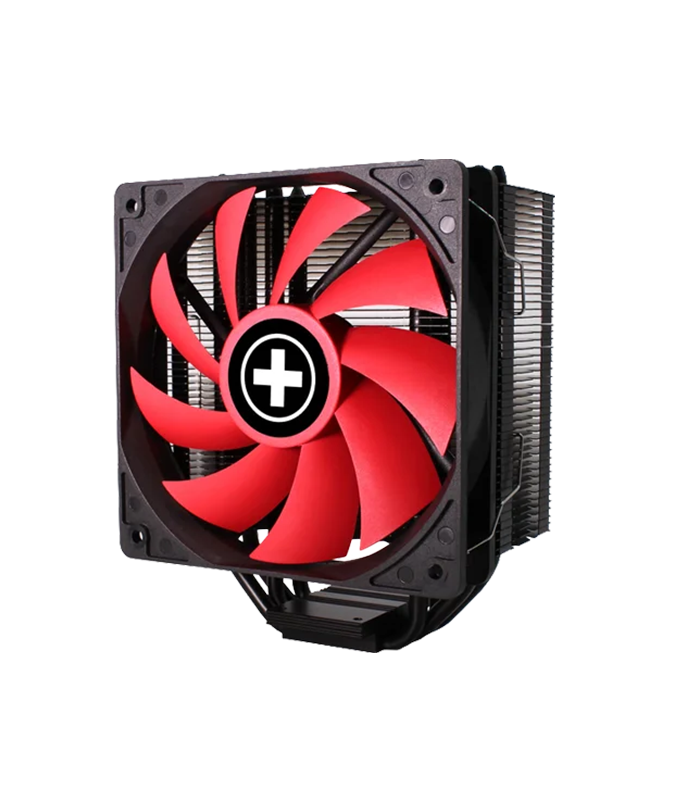

Xilence M704 Performance A+ CPU Cooler

The Xilence M704 Performance A+ is a tower-style CPU air cooler designed to provide effective cooling for gaming, home and general-purpose desktop systems. Its compact design combines a copper-core heatsink with a 120mm PWM fan, providing a practical balance between cooling performance, noise and overall size. The cooler measures approximately 160 × 120 × 75mm, allowing it to fit into a wide range of standard PC cases while providing substantially more cooling surface than a basic stock cooler. With a maximum specified thermal capacity of 180W TDP, the M704 is suitable for processors requiring more capable air cooling. Its universal mounting design also supports a broad selection of Intel and AMD sockets, making it a versatile option for new PC builds and CPU upgrades.

Copper-Core Heatsink Design

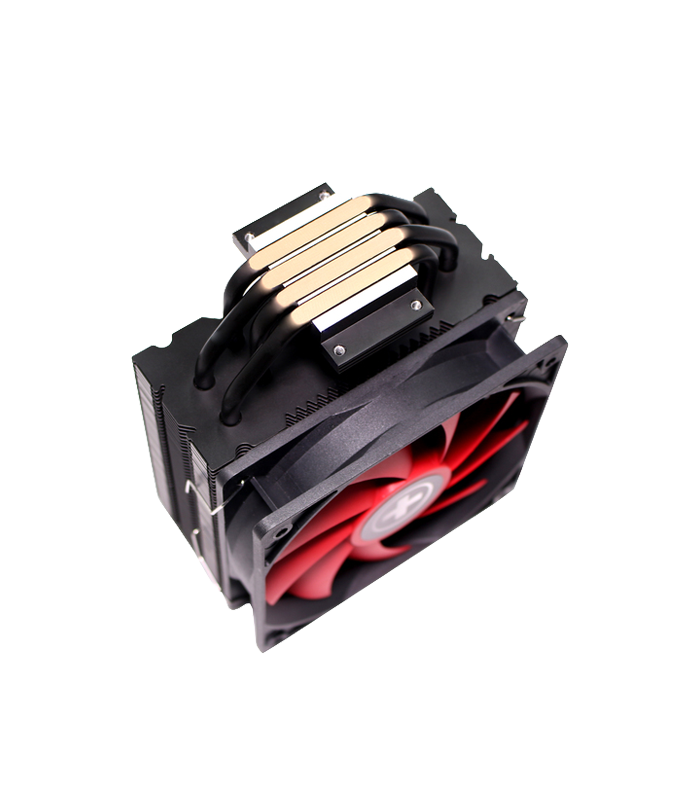

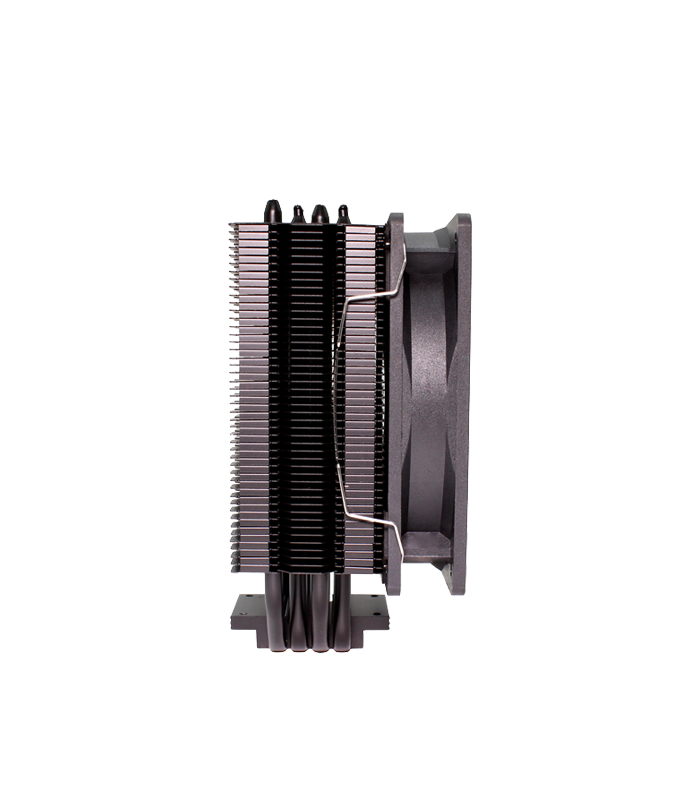

The M704 uses a heatsink designed around a copper-core construction to help transfer processor heat into the surrounding aluminium cooling structure. The tower-style design provides a larger surface area than conventional low-profile coolers, allowing airflow from the fan to remove heat more effectively during sustained workloads. Xilence specifies a cooling capability of up to 180W TDP, giving the cooler enough thermal capacity for a variety of mainstream and performance-oriented processors. The overall dimensions of approximately 160 × 120 × 75mm keep the cooler relatively compact for its class, while its layout allows the fan to be positioned on the opposite side of the heatsink when required. This flexible configuration can help accommodate different case airflow arrangements and motherboard layouts.

120mm PWM Fan with High Airflow

Cooling airflow is provided by a 120mm PWM fan using a fluid bearing design for controlled and reliable operation. The fan operates between approximately 700 and 1600 RPM ±10%, allowing compatible motherboard fan-control systems to adjust its speed according to CPU temperature and workload. At its maximum rated speed, the fan provides up to 70 CFM of airflow, helping move air through the heatsink and carry heat away from the copper-core cooling structure. The specified noise range is approximately 18.0 to 32.5 dB, giving the M704 the ability to operate more quietly during lighter workloads while increasing airflow when additional cooling is required. PWM control also makes it easier to integrate the cooler into an automatically managed PC cooling profile.

Flexible Fan Installation

The M704's design allows the 120mm fan to be installed on either side of the heatsink, providing additional flexibility when configuring airflow inside a PC case. This can be useful when the cooler is installed alongside different motherboard layouts, memory configurations or case ventilation arrangements. The fan's PWM connection enables the motherboard to manage its operating speed dynamically, while the heatsink provides a consistent surface for airflow to dissipate processor heat. With its approximately 120mm fan size and 160mm overall cooler height, the M704 follows a conventional tower cooler format that can work effectively with front-to-back airflow configurations. This makes it a practical choice for systems where straightforward installation, adjustable fan operation and dependable air cooling are more important than an oversized cooling assembly.

Broad Intel and AMD Compatibility

The Xilence M704 is designed with a multi-socket mounting system that supports a wide range of Intel and AMD desktop platforms. Compatible Intel sockets include LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA2011 and LGA2066, while supported AMD platforms include AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2 and FM1. This broad compatibility makes the M704 suitable for upgrading existing systems as well as building PCs around supported platforms. The cooler is supplied with the required mounting hardware for the supported sockets together with installation instructions and thermal paste. Because socket support depends on the specific mounting hardware supplied with the product, users should confirm the required socket before installation, particularly when working with an existing motherboard or an older processor platform.

Practical Cooling for Gaming and Everyday PCs

Combining a 180W TDP cooling specification, copper-core heatsink, 120mm PWM fan and 70 CFM airflow, the Xilence M704 Performance A+ offers a straightforward cooling solution for a broad range of desktop processors. Its adjustable fan speed allows the system to remain quieter during lighter workloads while providing increased airflow when CPU temperatures rise. The approximately 18.0–32.5 dB noise range is suited to everyday desktop operation as well as gaming workloads, while the conventional tower layout works naturally with typical case airflow. The cooler's broad Intel and AMD socket compatibility further increases its versatility, making it suitable for users upgrading older systems or assembling compatible gaming and productivity PCs. Overall, the M704 focuses on practical air cooling, flexible installation and wide platform support in a compact tower design.
