Case MSI Mag Forge M110R Airflow

MSI MAG FORGE M110R AIRFLOW

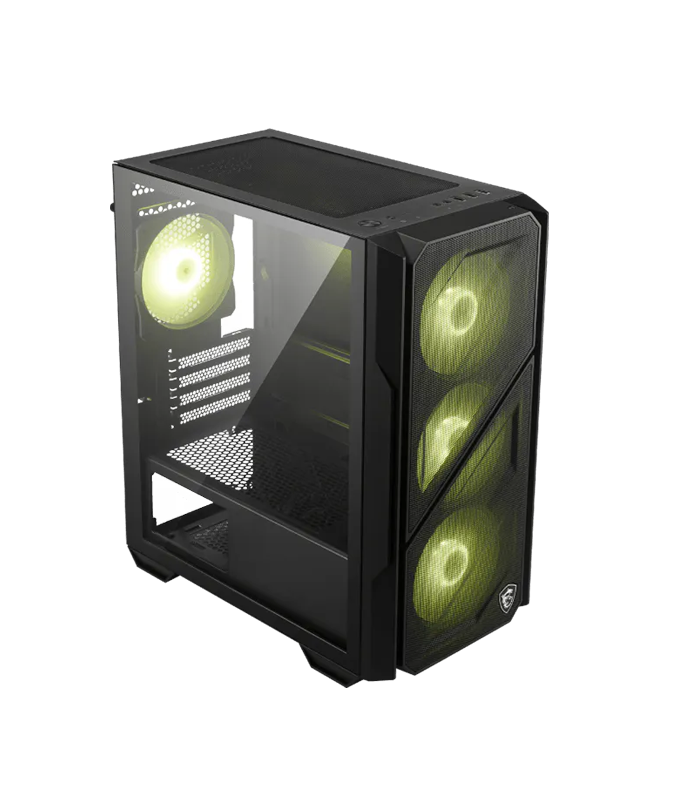

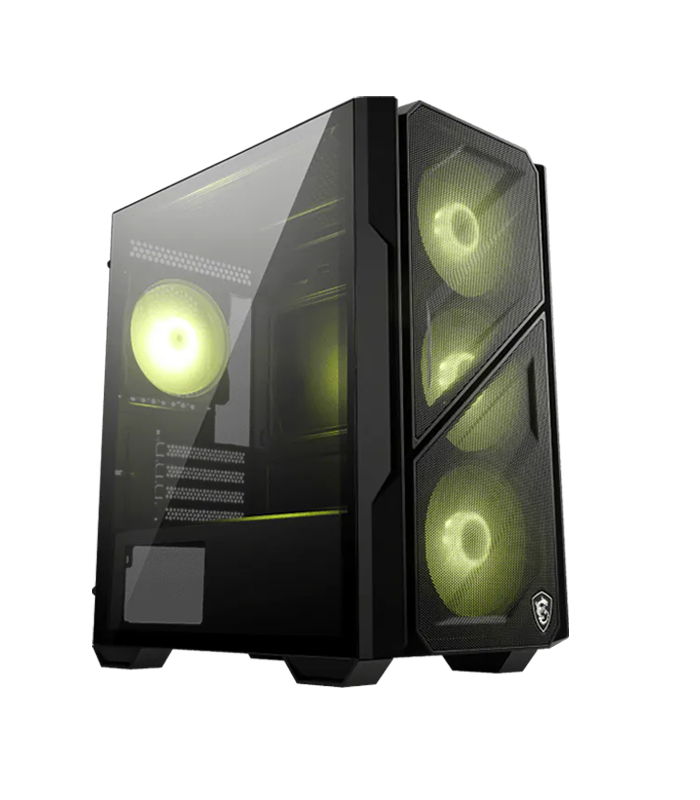

The MSI MAG FORGE M110R AIRFLOW is a compact Mini Tower PC case designed for gaming systems that need strong airflow without taking up unnecessary space. Supporting Micro-ATX and Mini-ITX motherboards, it combines a mesh front panel with four pre-installed 120mm Auto RGB fans to provide effective ventilation for the system. Its compact 388 × 200 × 423mm footprint makes it suitable for smaller gaming builds, while the tempered-glass side panel provides a clear view of the internal hardware and lighting. With support for up to six 120mm fans, multiple radiator positions and standard ATX power supplies, the M110R AIRFLOW offers a practical platform for compact gaming PCs.

Optimised Airflow with Four Pre-Installed Fans

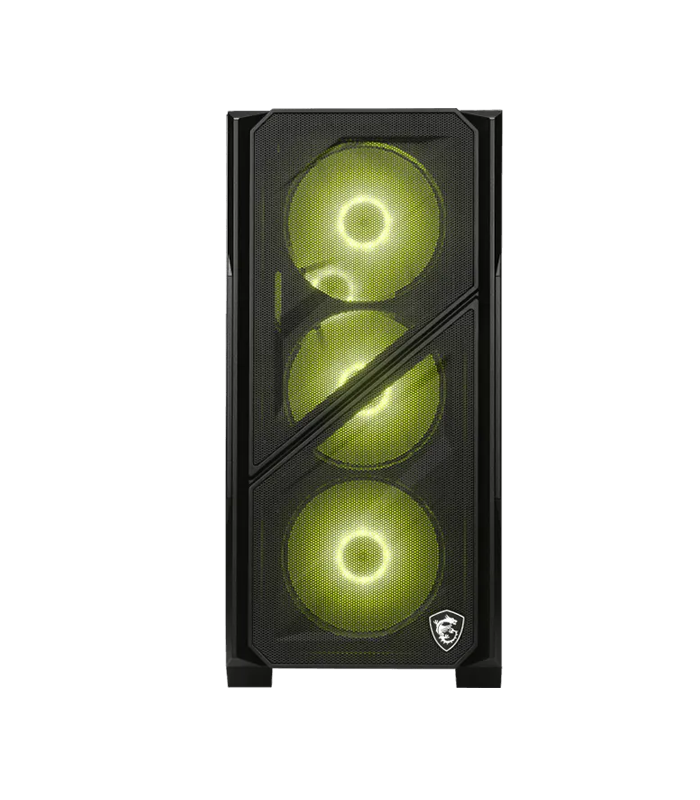

Cooling is a key focus of the MAG FORGE M110R AIRFLOW. The case comes equipped with four 120mm Auto RGB fans, including three mounted at the front and one at the rear. The front mesh design allows fresh air to enter the chassis efficiently, helping provide ventilation across the internal components. The case can accommodate up to six 120mm fans in total, with additional positions available at the top. This gives builders flexibility to further customise airflow depending on the hardware installed. The combination of the mesh front panel and multiple fan positions makes the M110R AIRFLOW well suited to gaming PCs where consistent component temperatures are important.

ARGB Lighting and Integrated Control

The built-in lighting system gives the M110R AIRFLOW a distinctive gaming appearance without requiring additional fans from the start. Its four pre-installed fans feature Auto RGB lighting, while the integrated 1-to-6 ARGB control board can support up to six ARGB fans. The case provides 26 selectable lighting effects through the dedicated LED switch button on the front I/O panel. This allows users to change the lighting without relying entirely on motherboard software. The controller is powered through a SATA connection and provides a convenient way to manage additional compatible ARGB fans as the system is upgraded.

Compact Hardware Support

Despite its compact Mini Tower format, the MAG FORGE M110R AIRFLOW provides useful clearance for gaming hardware. The chassis supports graphics cards up to 300mm in length and CPU coolers up to 160mm in height. Standard ATX power supplies are supported, with a maximum PSU length of 180mm when the 3.5-inch drive tray is installed, or up to 300mm without the tray. The case also provides four expansion slots and storage support for two 2.5-inch drives, one 3.5-inch drive and one additional 2.5/3.5-inch mounting position.

Flexible Cooling and Radiator Support

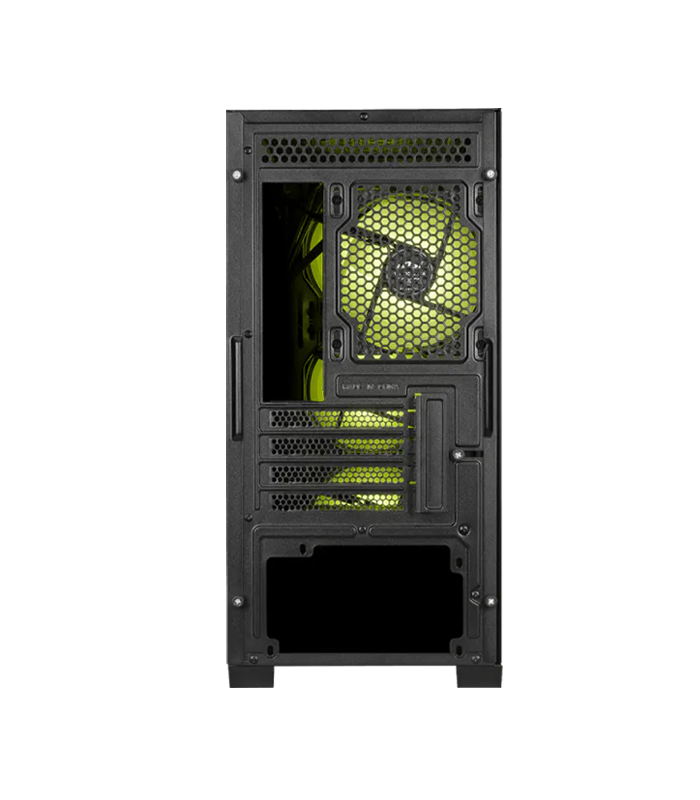

The case provides several options for installing additional cooling hardware. The front supports up to three 120mm fans, while the top can accommodate two 120mm fans and the rear supports one 120mm fan. For liquid cooling, the M110R AIRFLOW supports 120mm and 240mm radiators at the front and top, with an additional 120mm radiator position at the rear. This makes it possible to configure the case around either traditional air cooling or a compact liquid cooling solution. The available cooling positions give builders flexibility when selecting a CPU cooler and balancing airflow between front intake and rear or top exhaust.

Practical Design for Compact Gaming PCs

The MSI MAG FORGE M110R AIRFLOW combines compact dimensions with practical hardware compatibility and integrated RGB features. Its 3mm tempered-glass side panel provides a clear view of the components, while the top magnetic dust filter and removable bottom filter help make routine maintenance easier. The front I/O includes USB 5Gbps Type-A, two USB 2.0 Type-A ports, audio connections, power and reset buttons, and an LED control button. With its Micro-ATX and Mini-ITX support, four pre-installed RGB fans, flexible radiator compatibility and optimised airflow design, the M110R AIRFLOW is a practical choice for compact gaming PC builds.
