Motherboard B860 AsRock Rock Wifi

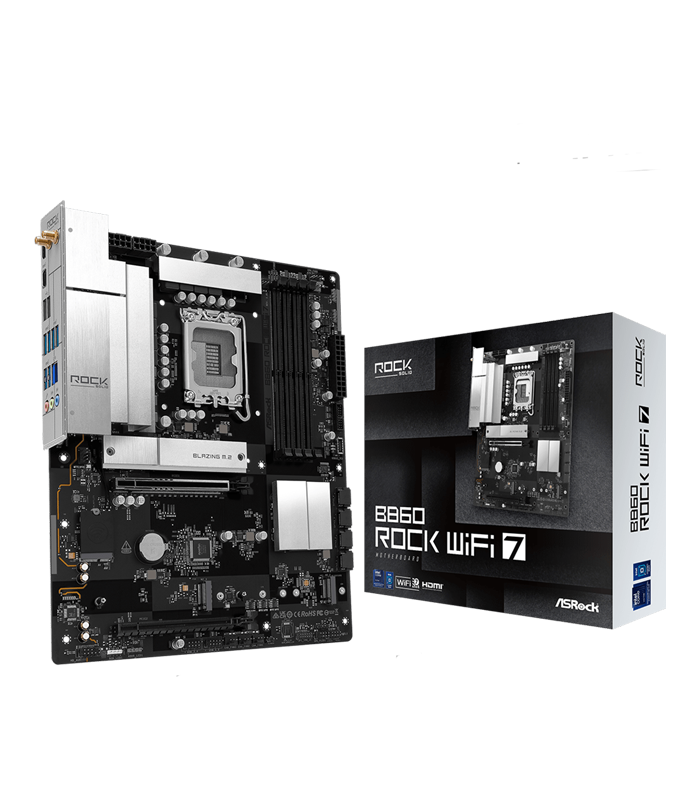

ASRock B860 Rock WiFi 7 – ATX Intel B860 Motherboard

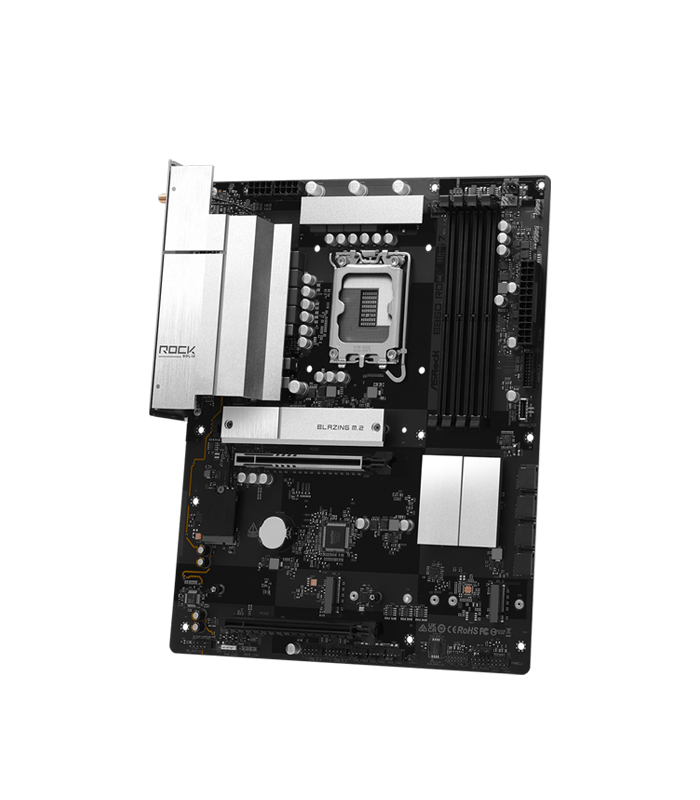

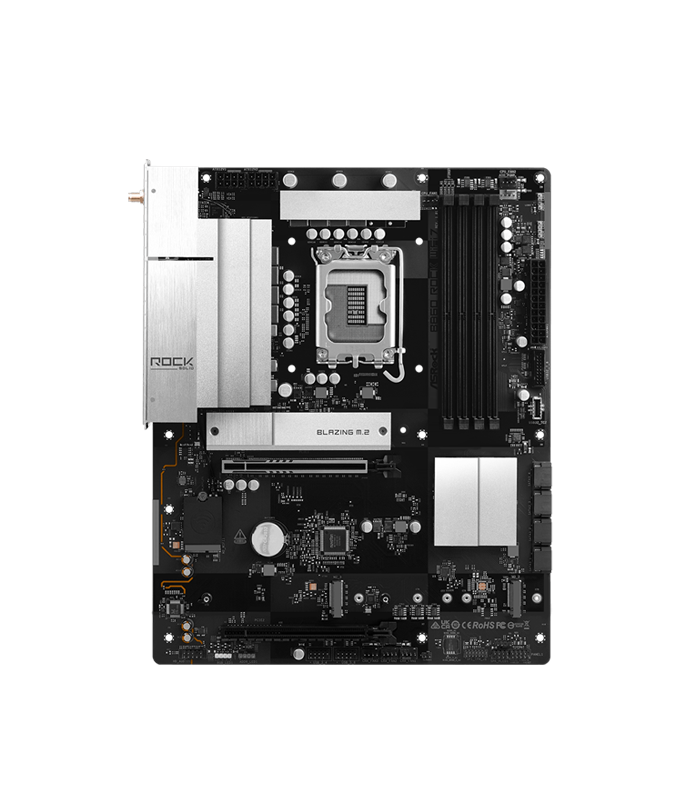

The ASRock B860 Rock WiFi 7 is an ATX motherboard designed as a capable foundation for modern Intel PC systems. Built around the Intel B860 chipset and LGA1851 socket, it combines modern DDR5 memory support with PCIe 5.0 expansion, high-speed NVMe storage connectivity and advanced networking features. The full-size ATX form factor provides plenty of room for system components while retaining a practical layout for gaming and productivity builds. With four DDR5 DIMM slots supporting up to 256GB of memory, the board can accommodate both standard gaming configurations and higher-capacity setups. Its combination of high-speed connectivity and flexible expansion makes the B860 Rock WiFi 7 a suitable platform for users building a modern Intel-based desktop from the ground up.

High-Speed DDR5 Memory Support

The ASRock B860 Rock WiFi 7 features 4 × DDR5 DIMM slots with support for up to 256GB of system memory. Compatible memory can reach speeds of up to DDR5-9066+ (OC), providing substantial memory bandwidth for modern gaming, multitasking and demanding desktop workloads. The four available slots also provide flexibility when configuring the system, allowing builders to select an appropriate memory capacity for their needs while retaining room for future expansion. Fast DDR5 memory can complement the motherboard's other high-speed interfaces, helping create a balanced platform for applications that benefit from increased memory bandwidth. Whether configured for a gaming-focused PC or a more demanding productivity system, the B860 Rock WiFi 7 provides a modern DDR5 memory platform with considerable capacity and overclocked memory speed support.

PCIe 5.0 Expansion and M.2 NVMe Storage

For expansion, the motherboard provides 1 × PCIe 5.0 x16 slot together with 1 × PCIe 4.0 x4 slot. The primary PCIe 5.0 x16 interface provides a high-bandwidth connection for a compatible graphics card or other supported expansion hardware. Storage flexibility is provided by 3 × M.2 PCIe 4.0 x4 slots, allowing multiple high-speed NVMe SSDs to be installed directly onto the motherboard. The board also includes 4 × SATA 6Gb/s ports for compatible SATA storage devices. This combination gives builders several options when designing a storage configuration, whether the system requires a single fast NVMe drive or multiple drives for additional capacity, applications and games. The combination of PCIe expansion and multiple M.2 slots makes the motherboard well suited to modern storage-focused PC builds.

Wi-Fi 7, Bluetooth 5.4 and 2.5GbE Networking

The ASRock B860 Rock WiFi 7 provides several modern networking options for connected desktop systems. Integrated Wi-Fi 7 provides the latest generation of wireless networking connectivity on compatible networks, making it suitable for users who prefer a wireless connection without adding a separate expansion card. The motherboard also includes Bluetooth 5.4, providing wireless connectivity for compatible peripherals and accessories such as keyboards, mice, controllers and other supported devices. For wired networking, a 2.5GbE LAN connection provides higher network bandwidth than traditional Gigabit Ethernet when used with compatible networking hardware. Together, these networking options provide flexibility for gaming, streaming, large downloads, file transfers and general online use, allowing the system to connect through wired or wireless infrastructure depending on the user's setup and available network equipment.

7.1-Channel High Definition Audio

For audio connectivity, the B860 Rock WiFi 7 features 7.1-channel HD Audio, providing support for multi-channel audio configurations. This makes the motherboard suitable for gaming PCs, entertainment systems and desktop environments where multi-channel sound is required. A motherboard-integrated audio solution also helps keep the overall system configuration simple, without requiring a separate sound card for standard audio requirements supported by the board. Combined with the motherboard's high-speed networking, storage and expansion interfaces, the audio functionality forms part of a well-rounded platform for modern desktop use. Whether the system is primarily used for gaming, media consumption, communication or everyday applications, the 7.1-channel HD Audio support provides a suitable foundation for compatible multi-channel audio equipment and peripherals.

A Versatile ATX Platform for Modern Intel PCs

Combining the Intel B860 chipset, LGA1851 socket, high-speed DDR5 support and PCIe 5.0 expansion, the ASRock B860 Rock WiFi 7 provides a flexible foundation for modern Intel PC builds. Its 4 × DDR5 DIMM slots support up to 256GB of memory, while three M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports provide multiple storage configuration options. Networking is covered by 2.5GbE LAN, Wi-Fi 7 and Bluetooth 5.4, while 7.1-channel HD Audio provides support for multi-channel sound setups. With its full-size ATX format and combination of high-speed expansion, storage, memory and connectivity features, the B860 Rock WiFi 7 is designed to serve as a versatile motherboard platform for modern gaming, productivity and general-purpose desktop systems.
