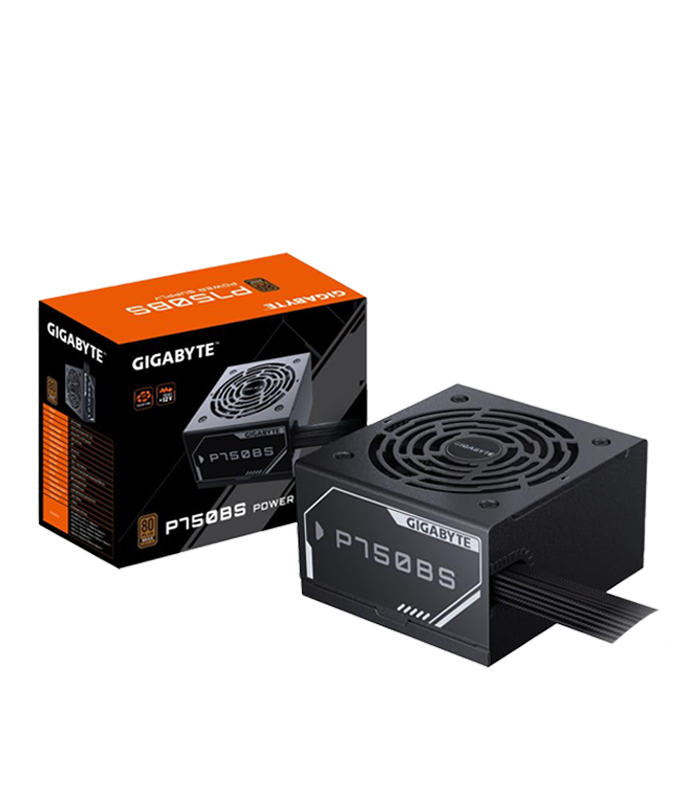

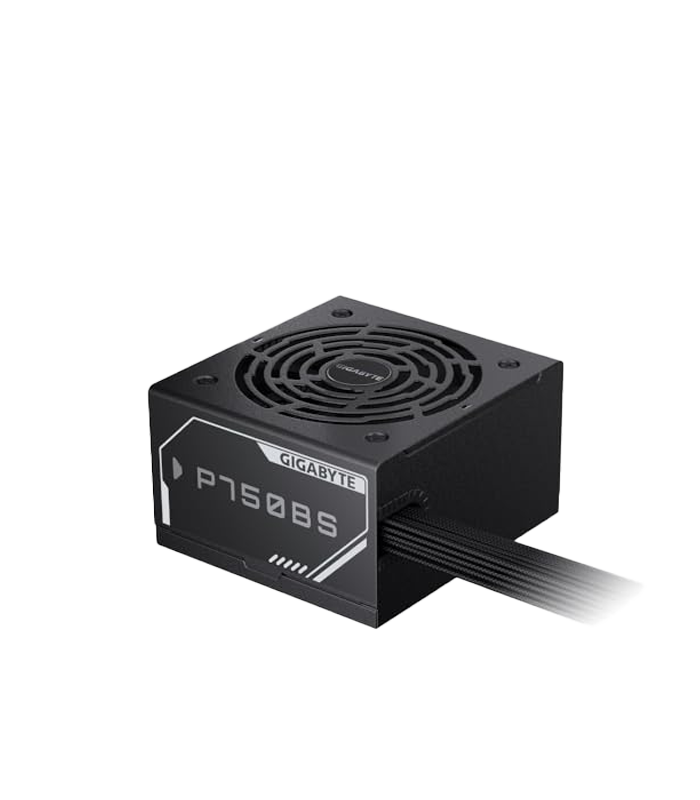

Power Supply 750W Gigabyte P750BS Bronze

GIGABYTE P750BS 750W – Reliable Bronze Power for Gaming PCs

The GIGABYTE P750BS is a 750W ATX power supply designed to provide dependable power for gaming PCs, everyday desktops, and performance-oriented systems. With a rated 750W output and an 80 PLUS Bronze certification for 230V EU operation, it offers a practical balance of power capacity and efficiency. The PSU uses an active PFC design and supports a 200–240V input range, making it suitable for standard European electrical environments. Its conventional ATX form factor measures 150 × 140 × 86mm, allowing it to fit a wide range of compatible PC cases. With a black finish, black embossed cables, and a high-capacity 12V rail, the P750BS provides a straightforward foundation for balanced gaming and desktop configurations.

750W Power with Strong 12V Output

With 750W of total power output, the GIGABYTE P750BS provides enough capacity for a wide range of modern gaming and performance PC configurations. Its main 12V rail is designed to deliver the power required by the processor and dedicated graphics card, while the active PFC system helps maintain efficient and stable power delivery. The PSU operates with a 200–240V AC input and supports a 50–60Hz frequency range. For users building a system around a mainstream or high-performance CPU and dedicated graphics card, the 750W capacity provides useful headroom while remaining suitable for a broad range of component combinations. The P750BS is designed as a practical power solution where dependable output and sensible operating efficiency are important.

80 PLUS Bronze Efficiency

The GIGABYTE P750BS carries an 80 PLUS Bronze certification for 230V EU operation and reaches up to 88% efficiency at typical load. This helps reduce unnecessary energy losses during normal operation while maintaining the power required by the connected PC components. The power supply also features an active PFC system with a typical power factor above 0.9, supporting efficient electrical power conversion. For a gaming PC that may experience a mixture of idle, everyday, and demanding workloads, the Bronze-rated efficiency provides a practical balance between energy use and overall system performance. Its design is focused on delivering the required power consistently without adding unnecessary complexity to a typical desktop configuration.

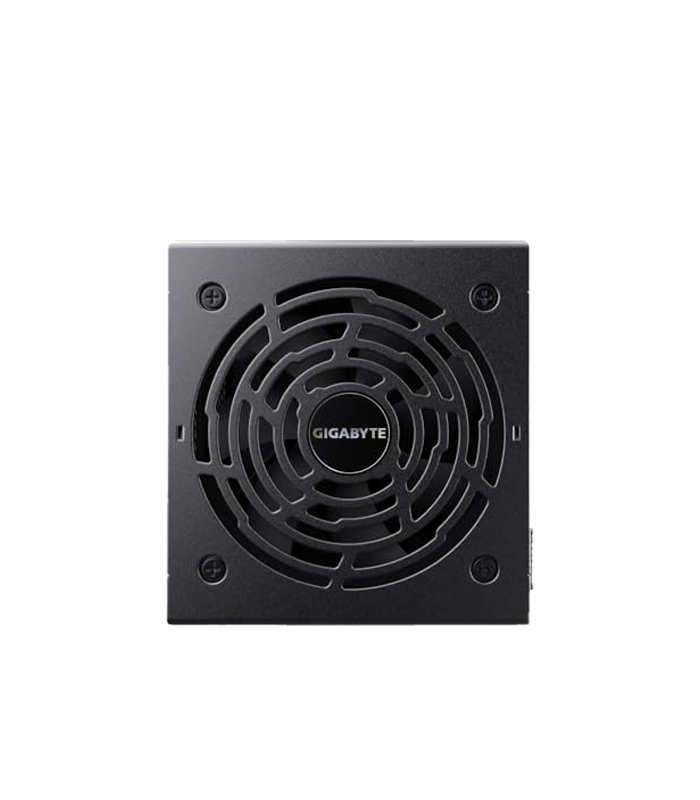

120mm Fluid Dynamic Bearing Fan

Cooling is handled by a 120mm Fluid Dynamic Bearing (FDB) fan, designed to provide reliable airflow while supporting long-term operation. The FDB bearing design is intended to provide smooth fan operation and durability, making it well suited to a power supply that may operate for extended periods under gaming or other demanding workloads. The P750BS also has an advertised MTBF of more than 100,000 hours, reflecting its intended reliability under specified operating conditions. The standard ATX enclosure and 120mm fan arrangement allow the PSU to integrate easily into compatible desktop cases while providing the airflow required to manage internal temperatures during normal operation.

Protection and Comprehensive Connectivity

The GIGABYTE P750BS includes several integrated protection systems designed to help protect both the PSU and connected PC components. These include over-voltage protection, over-power protection, short-circuit protection, under-voltage protection, over-current protection, and over-temperature protection. Connectivity is designed around modern desktop systems, with one 20+4-pin ATX motherboard connector and two 4+4-pin CPU/EPS connectors. Graphics card support is provided through four PCIe 6+2-pin connectors. For storage and peripherals, the PSU provides four SATA connectors plus an additional cable with three SATA connectors and one peripheral connector. This gives the P750BS considerable flexibility for a range of gaming and desktop configurations.

Practical Power for Modern PC Builds

Combining 750W output, 80 PLUS Bronze efficiency, active PFC, a 120mm FDB cooling fan, and multiple protection systems, the GIGABYTE P750BS is designed to provide reliable power for balanced gaming and desktop PCs. Its four PCIe 6+2-pin connectors offer flexibility for compatible dedicated graphics cards, while the dual CPU/EPS connectors provide additional options for systems requiring more processor power connections. The PSU uses all-black embossed cables and a compact standard ATX enclosure measuring 150 × 140 × 86mm, helping it integrate cleanly into modern builds. With its combination of capacity, efficiency, connectivity, and protection, the P750BS provides a straightforward solution for users looking for a dependable 750W Bronze-rated power supply.
