Power Supply 750W Asus TUF Gaming 750B EVO Bronze

ASUS TUF Gaming 750W Bronze EVO

The ASUS TUF Gaming 750W Bronze EVO is a modern ATX power supply designed to provide dependable power delivery for gaming PCs and performance-focused desktop systems. With a 750W total output, 80 PLUS Bronze efficiency and support for the ATX 3.1 standard, it is suited to current-generation PC hardware. The power supply uses an active PFC design and provides up to 62.5A on the +12V rail, allowing it to deliver the full 750W combined +12V output. Its compact 140 × 150 × 86mm chassis makes it suitable for a wide range of standard ATX cases.

ATX 3.1 Power for Modern Components

Built around the ATX 3.1 specification, the TUF Gaming 750W Bronze EVO is designed for modern PC platforms and current-generation components. It supports a broad 100–240V AC input range and provides 80W each across the +3.3V and +5V rails, while the +12V rail provides up to 750W combined output. This makes the PSU a practical choice for gaming systems where the CPU and graphics card represent the majority of system power consumption. The combination of 750W capacity and modern ATX support gives builders a flexible power foundation for a wide variety of mid-range and performance gaming configurations.

80 PLUS Bronze Efficiency

The 80 PLUS Bronze certification provides an efficiency-focused design intended to reduce unnecessary power losses during normal operation. The TUF Gaming 750W Bronze EVO uses active PFC and an active cooling system to manage power delivery and operating temperatures. ASUS specifies a mean time between failures above 120,000 hours at 40°C, providing a long-term reliability target for the platform. The PSU uses a dual-ball-bearing fan design, while its compact dimensions allow it to fit into standard ATX-compatible cases without requiring additional space compared with larger high-wattage power supplies.

Comprehensive Protection Features

Protection is an important part of a gaming power supply, particularly when paired with expensive processors, graphics cards and other components. The ASUS TUF Gaming 750W Bronze EVO includes multiple integrated protection systems covering over-power, over-voltage, under-voltage, short-circuit, over-current and over-temperature conditions. These protections are designed to help safeguard the power supply and connected PC hardware if abnormal electrical conditions occur. The unit also uses a 62.5A +12V output, providing a strong primary rail for components that rely heavily on 12V power. This combination makes it suitable for gaming PCs, workstation-style desktops and general-purpose performance systems.

Practical Connectivity

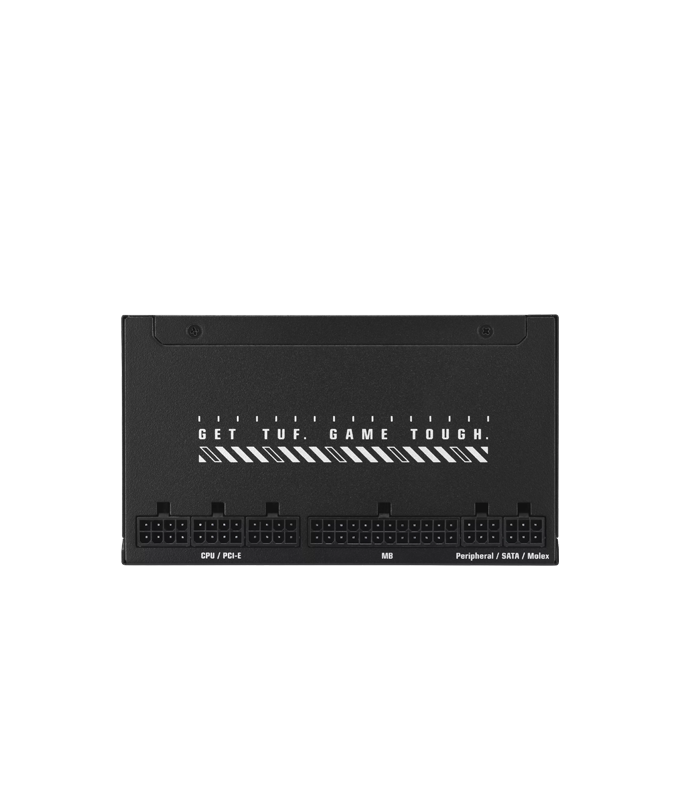

The TUF Gaming 750W Bronze EVO provides a practical selection of power connectors for modern PC builds. Connectivity includes one 24/20-pin motherboard connector, two 4+4-pin CPU connectors and three PCIe 6+2-pin connectors for compatible graphics cards and expansion hardware. The PSU also includes four SATA power connectors and two peripheral connectors. Cable lengths include a 500mm motherboard cable, a 650mm + 100mm CPU cable arrangement and PCIe cables extending up to 675mm depending on the supplied configuration, helping provide flexibility when routing cables through larger cases.

A Reliable Foundation for Gaming PCs

With its 750W capacity, 80 PLUS Bronze efficiency, ATX 3.1 compatibility and comprehensive protection circuitry, the ASUS TUF Gaming 750W Bronze EVO provides a balanced foundation for a wide range of gaming PC configurations. Its 140 × 150 × 86mm chassis, active cooling and practical connector selection make it straightforward to integrate into standard ATX systems. Whether used for a new gaming PC or as a replacement power supply, the unit provides the capacity and modern platform support needed for many current builds. The combination of a strong +12V rail, modern ATX specification and established TUF Gaming design makes it a practical choice for reliable everyday PC power delivery.
