Case Corsair 3200D RS

Corsair 3200D RS – Airflow-Focused Mid-Tower PC Case

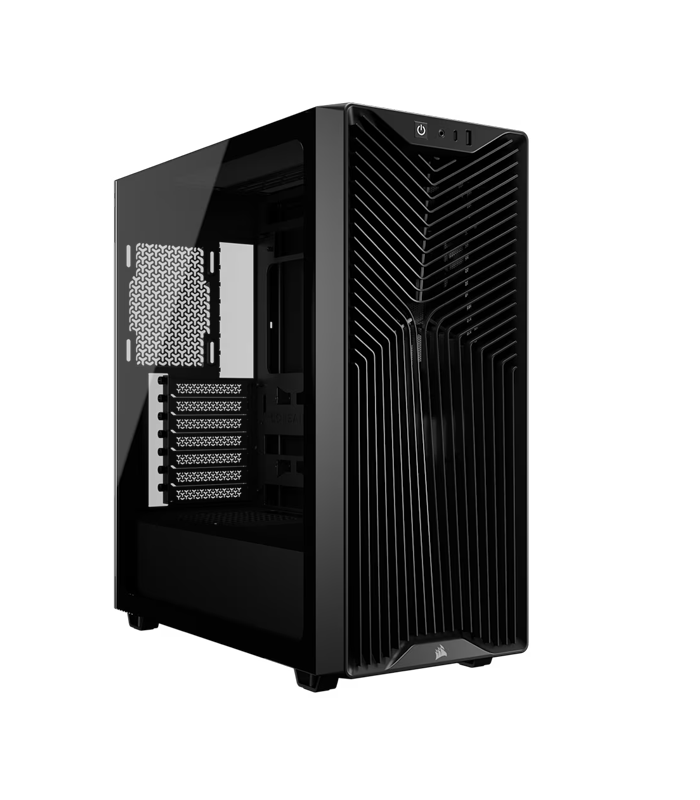

The Corsair 3200D RS is a spacious ATX mid-tower case designed for modern gaming PCs, combining strong airflow potential with straightforward component installation and clean cable management. Measuring 495 × 219 × 458 mm, the chassis supports Mini-ITX, Micro-ATX and ATX motherboards and provides up to 400 mm of GPU clearance. The case includes three pre-installed Corsair RS120 PWM fans, while additional mounting positions allow extensive airflow configuration. Its tempered glass side panel provides a clear view of the hardware, while the steel chassis and integrated PSU shroud create a clean foundation for a modern gaming build.

Three RS120 PWM Fans Included

The 3200D RS comes with three Corsair RS120 PWM fans pre-installed, providing a ready-to-use airflow configuration straight out of the box. The chassis supports up to nine 120 mm fans in total, with additional mounting positions at the front, top, bottom and rear. The bottom of the case features an angled 120 mm fan mount positioned towards the graphics card, allowing additional airflow to be directed at the GPU. The included RS120 fans use magnetic dome bearings designed to reduce friction and mechanical noise while maintaining effective airflow. Their direct-to-motherboard connection also allows compatible fans to be daisy-chained through a single 4-pin PWM connection.

360 mm Radiator Support

The Corsair 3200D RS provides extensive cooling flexibility for both air- and liquid-cooled systems. The case supports 360 mm, 280 mm and 240 mm radiators at both the front and top, while a 120 mm radiator can be installed at the rear. This gives builders plenty of flexibility when installing modern AIO CPU coolers. Fan support includes 3 × 120 mm or 2 × 140 mm at the front, 3 × 120 mm or 2 × 140 mm at the top, 2 × 120 mm at the bottom and 1 × 120 mm at the rear. With up to nine 120 mm fan positions available, the chassis can be configured for strong continuous airflow around high-performance components.

Large GPU Clearance and Anti-Sag Support

Designed with modern graphics cards in mind, the 3200D RS provides up to 375 mm of GPU clearance with front fans installed, increasing to 400 mm with the front fans removed. This gives the chassis room for many large contemporary graphics cards. Corsair also integrates an adjustable GPU Anti-sag Stabilization Arm to provide additional support underneath the graphics card and help reduce stress on the card and PCIe slot. The case supports seven horizontal expansion slots, while vertical GPU mounting is not supported. The combination of generous internal space and integrated GPU support makes the 3200D RS suitable for powerful gaming configurations.

Clean Cable Management and Reverse-Connector Support

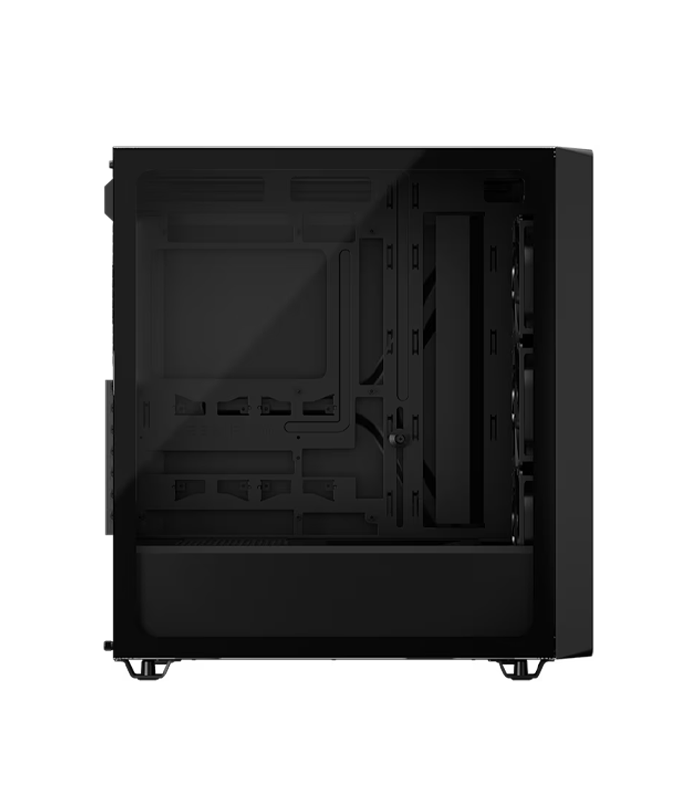

The 3200D RS is designed to simplify the process of building and managing a modern PC. It provides approximately 24 mm of cable routing space behind the motherboard area, together with an integrated cable shroud and multiple tie-down points. The case also supports reverse-connector motherboards, allowing compatible boards with rear-mounted connections to be installed for an especially clean-looking interior. Dust filtration is included to help reduce dust entering the chassis during normal operation. These features make the 3200D RS suitable for both conventional component layouts and newer motherboard designs focused on hiding visible cables.

Modern Front I/O and Spacious Internal Layout

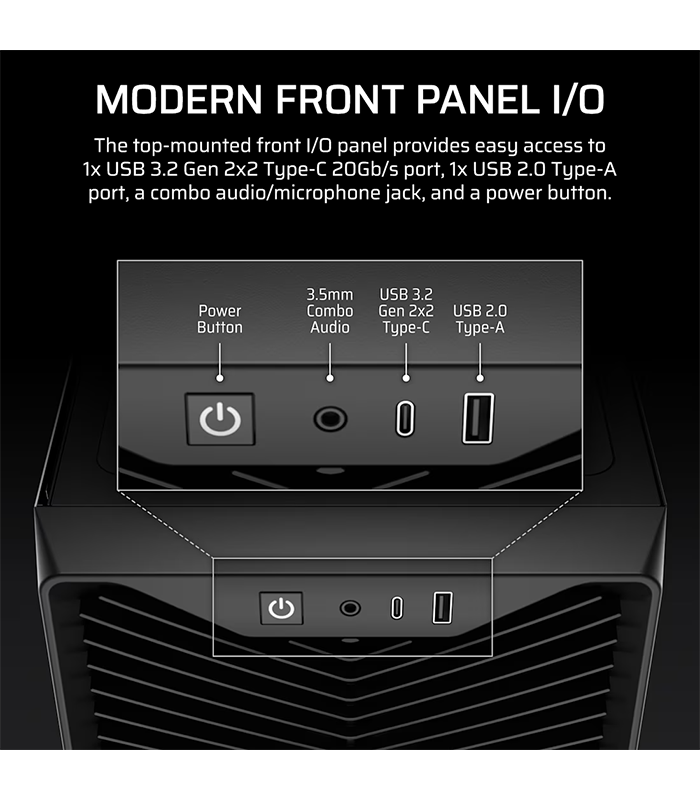

The top-mounted front I/O provides convenient access to a USB 3.2 Gen 2x2 Type-C port supporting up to 20 Gb/s, a USB 2.0 Type-A port, a combined headphone/microphone jack and the power button. Internally, the case supports a maximum 165 mm CPU cooler height and an ATX power supply up to 180 mm long. The left side uses a tempered glass panel, while the right side is constructed from steel. With support for modern motherboards, large graphics cards, multiple cooling configurations and three included RS120 fans, the Corsair 3200D RS provides a flexible foundation for high-performance gaming and enthusiast PC builds.
