Power Supply 1000W CoolerMaster Elite 1000 Gold

Cooler Master Elite Gold 1000 FM – 1000W Gold Power for Modern PCs

The Cooler Master Elite Gold 1000 FM is a high-capacity power supply designed for powerful gaming PCs, workstations, and modern performance systems. With a substantial 1000W continuous output and an 80 PLUS Gold efficiency rating, it provides the power capacity required by demanding CPUs and high-performance graphics cards. The unit is built around the modern ATX 3.1 standard and supports PCIe Gen 5.1, making it suitable for current-generation hardware and future upgrades. With efficiency of 90% or higher at typical load, it is designed to minimise unnecessary energy loss and heat generation. The standard ATX form factor and black finish allow the Elite Gold 1000 FM to integrate naturally into a wide range of modern PC builds.

1000W Capacity with 80 PLUS Gold Efficiency

With 1000W of rated power, the Elite Gold 1000 FM provides substantial headroom for demanding PC configurations. This capacity makes it suitable for systems using high-performance processors, powerful graphics cards, multiple storage devices, and other demanding components. The 80 PLUS Gold certification is complemented by a rated efficiency of at least 90% at typical load, helping reduce wasted electrical energy and unnecessary heat during normal operation. The power supply supports an extensive 100–240V input range and operates at 50–60Hz, making it suitable for standard electrical environments. Combined with active PFC, the unit is designed to deliver stable and efficient power for gaming, rendering, content creation, and other demanding workloads.

ATX 3.1 and PCIe Gen 5.1 Ready

The Elite Gold 1000 FM is built to meet the requirements of modern PC hardware through support for ATX 3.1 and PCIe Gen 5.1. It includes a dedicated 12+4-pin connector designed for modern high-power graphics cards, making it particularly suitable for current-generation GPU configurations. The unit also provides six PCIe 6+2-pin connectors, offering additional flexibility for compatible graphics cards and expansion hardware. Dual EPS connectors provide further compatibility with modern platforms that require additional CPU power connections. With support for transient power demands specified by the ATX 3.1 standard, the Elite Gold 1000 FM is designed to handle the changing power requirements of today's high-performance components while providing a modern connection platform for future upgrades.

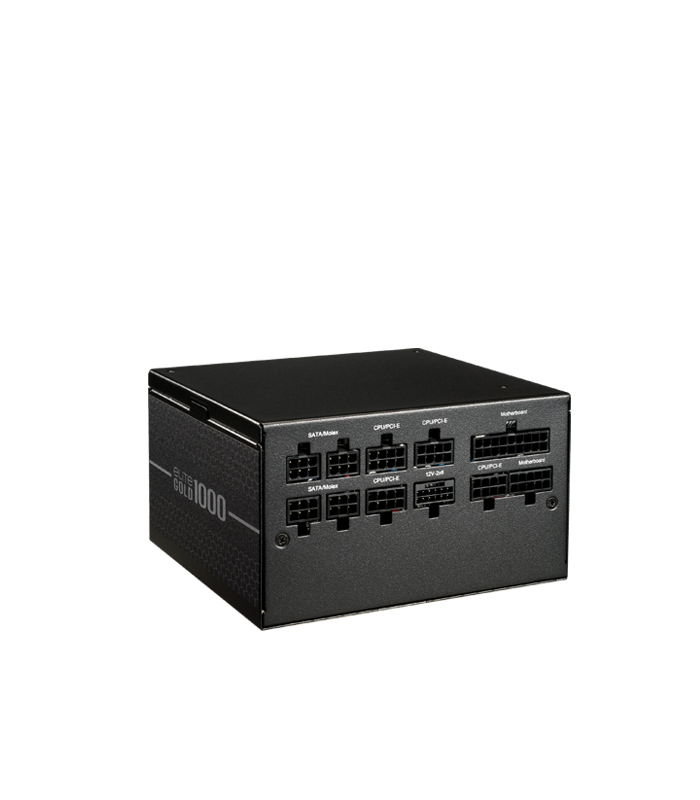

Fully Modular Cable Design

The fully modular design allows users to connect only the cables required for their particular PC configuration. This helps reduce unnecessary cables inside the case and makes cable management cleaner and easier during installation. The Elite Gold 1000 FM uses flat black modular cables, providing a practical solution for routing cables around modern components while maintaining a clean internal appearance. Connectivity includes one ATX 24-pin connector, two EPS 4+4-pin connectors, six PCIe 6+2-pin connectors, one 12+4-pin connector, nine SATA connectors, and three peripheral 4-pin connectors. This extensive selection provides considerable flexibility for high-performance gaming PCs, workstations, multiple-drive configurations, and systems with demanding graphics hardware.

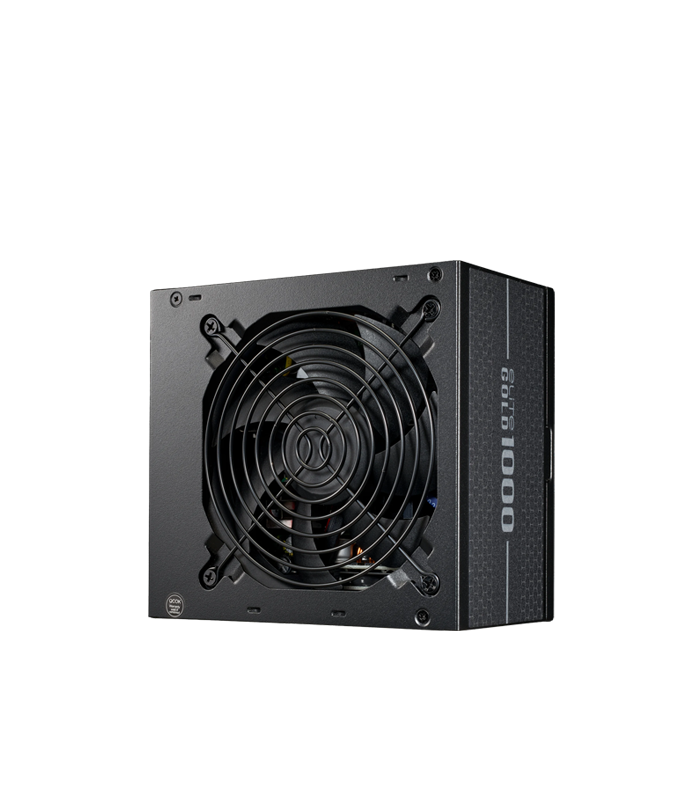

120mm FDB Fan and Comprehensive Protection

Cooling is handled by a 120mm Fluid Dynamic Bearing (FDB) fan, designed to provide stable and long-lasting airflow while maintaining quiet operation. The FDB design supports smooth fan operation and reliable cooling during extended workloads. The power supply is designed to operate reliably at temperatures of up to 40°C, making it suitable for extended gaming, rendering, and other demanding workloads. Protection features include UVP, OVP, OPP, OTP, and SCP, helping protect the PSU and connected hardware against under-voltage, over-voltage, over-power, over-temperature, and short-circuit conditions. With a specified MTBF of over 100,000 hours at 25°C ambient temperature, the Elite Gold 1000 FM is designed for dependable long-term operation.

Built for High-Performance Gaming and Workstations

Combining 1000W output, 80 PLUS Gold efficiency, ATX 3.1 support, PCIe Gen 5.1 compatibility, fully modular cabling, and a dedicated 12+4-pin connector, the Cooler Master Elite Gold 1000 FM is designed for demanding modern PC builds. Its extensive selection of PCIe, EPS, SATA, and peripheral connectors provides the flexibility required by powerful gaming systems and workstation configurations. Measuring 140 × 150 × 86mm, the standard ATX enclosure is designed to fit a wide range of compatible cases. The combination of high power capacity, modern standards, efficient operation, and comprehensive protection makes this PSU a strong foundation for systems that require substantial and dependable power. The unit is backed by a 10-year warranty, providing long-term manufacturer support.
